Project Description

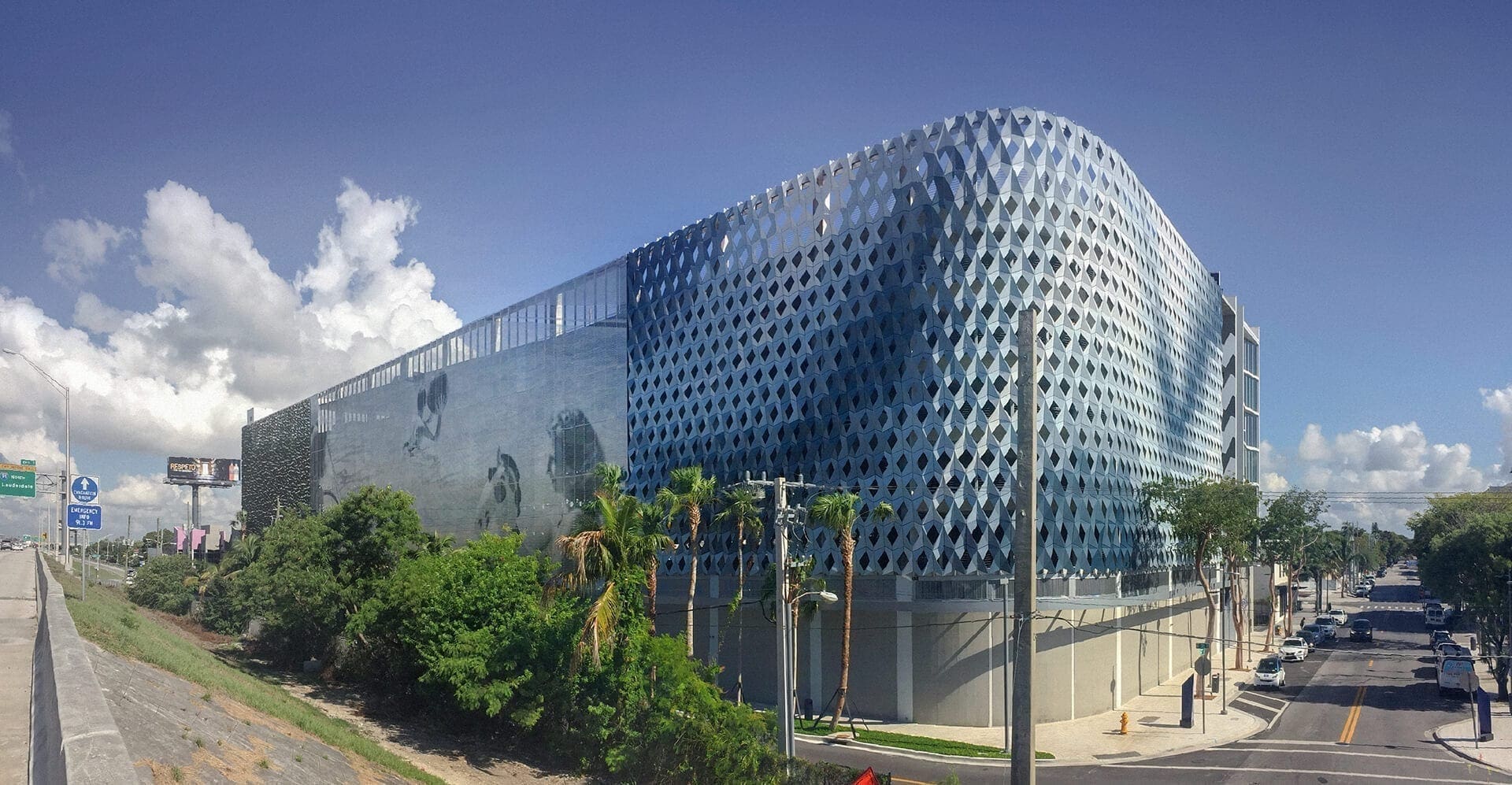

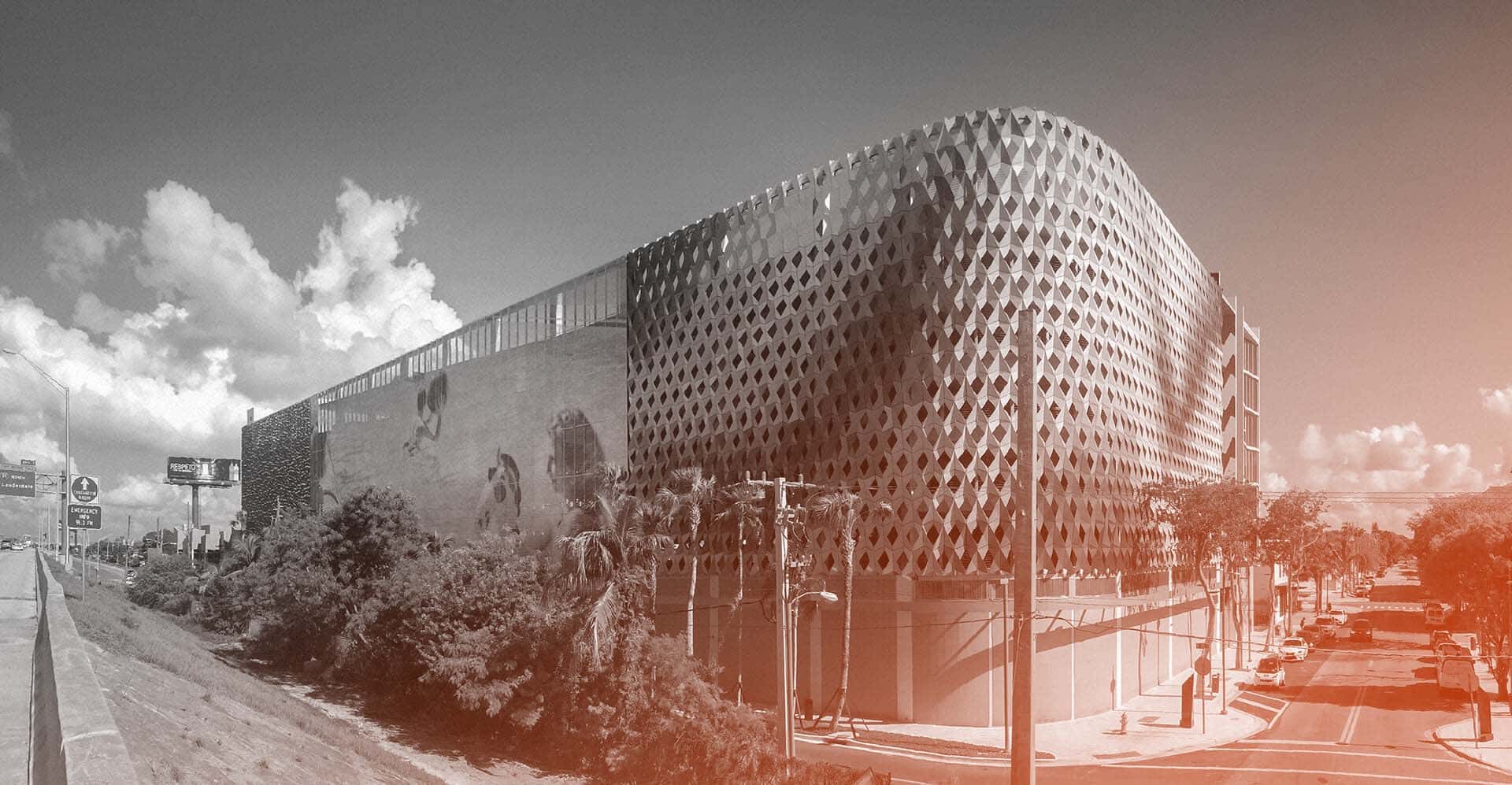

City View Garage, Miami Design District

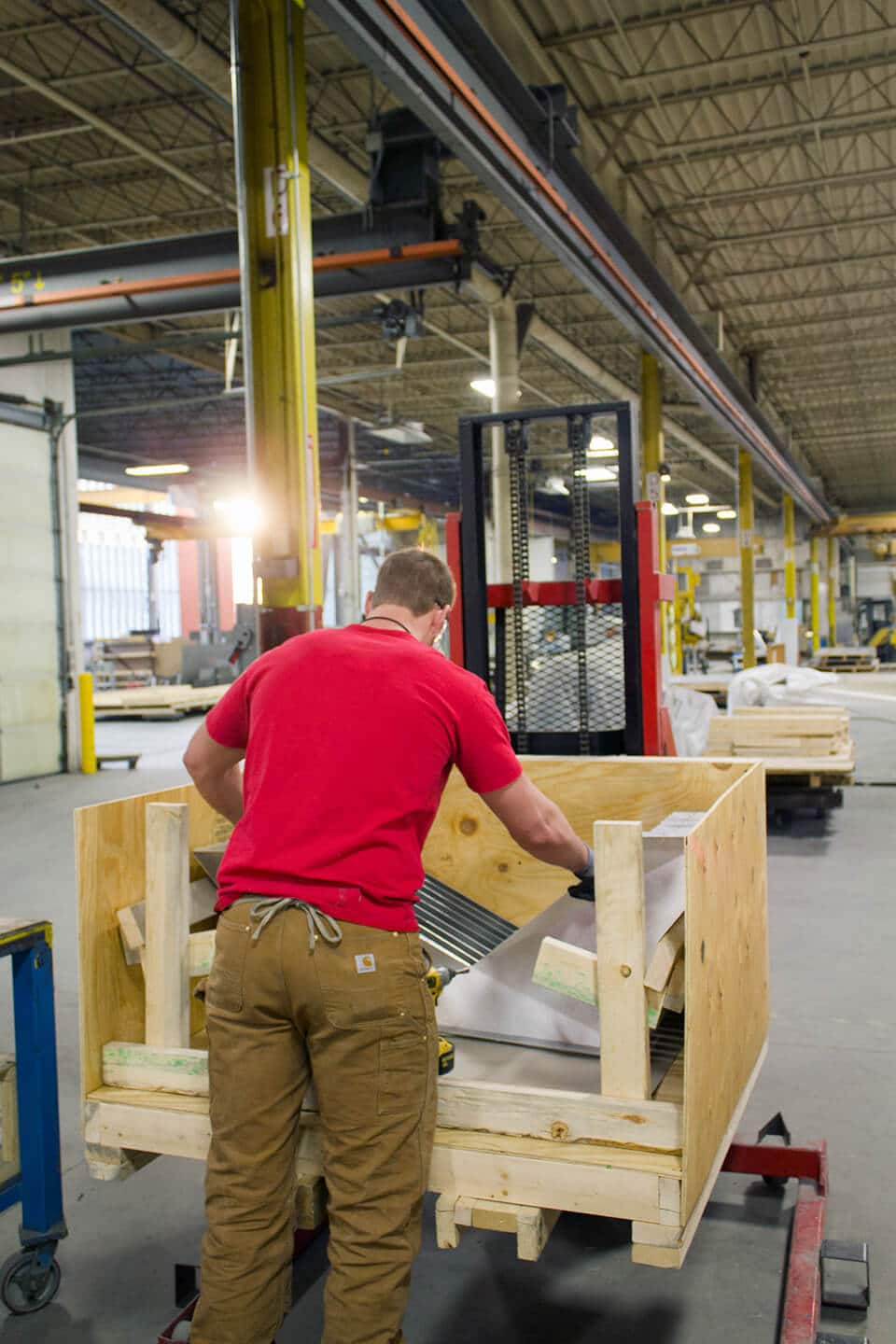

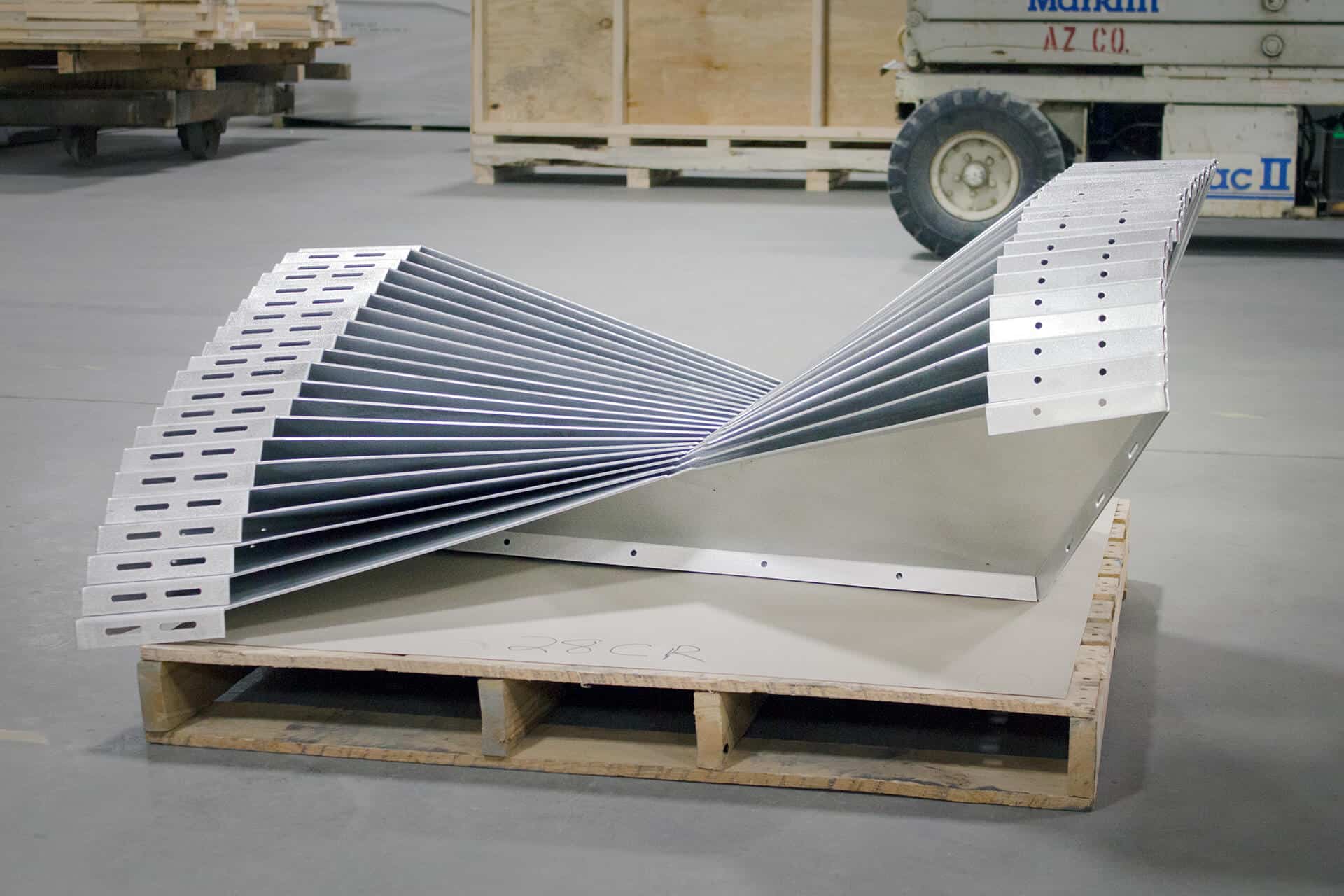

A geometric display of varying blue-toned aluminum skins adorns the Southeastern facade of the City View Garage in the Miami Design District. Designed by IwamotoScott Architecture, the Zahner-manufactured facade was developed in Kansas City and shipped as nesting parts to the job site in Miami, Florida. Zahner field installers hung the panels.

Sited along the Southern edge of the Miami Design District adjacent to I-195, the parking structure is part of a larger plan to bring arts, luxury, and culture into the new district. The main body of the building is a parking structure above a level of retail storefront and includes a small six story office block.

The building’s design averted the need for industrial ventilation of the parking area. IwamotoScott met this challenge with a modular decorative metal screen, whose mechanically-folded aluminum system features variously sized apertures to provide the required porosity for natural ventilation.

City View Garage in Miami’s Design District Features 3 Iconic Facades by Zahner

Zahner was brought on board by the lead architect, Tim Haas, to assist in the design engineering, fabrication, and installation of all three distinct facades on the City View Garage. We worked closely with the featured designers – Leong Leong, IwamotoScott Architecture, and renowned artist John Baldessari – to capture the essence of each unique design in a way that was both functional and impactful.

IwamotoScott was commissioned alongside New York-based architects Leong Leong and Southern California-based artist John Baldessari, by Dacra and L Real Estate to create three unique facades for the City View Garage in Miami’s Design District. The IwamotoScott portion of the facade wraps around the parking structure’s Southeast corner and includes an elevator lobby, exterior stair, and the office block.

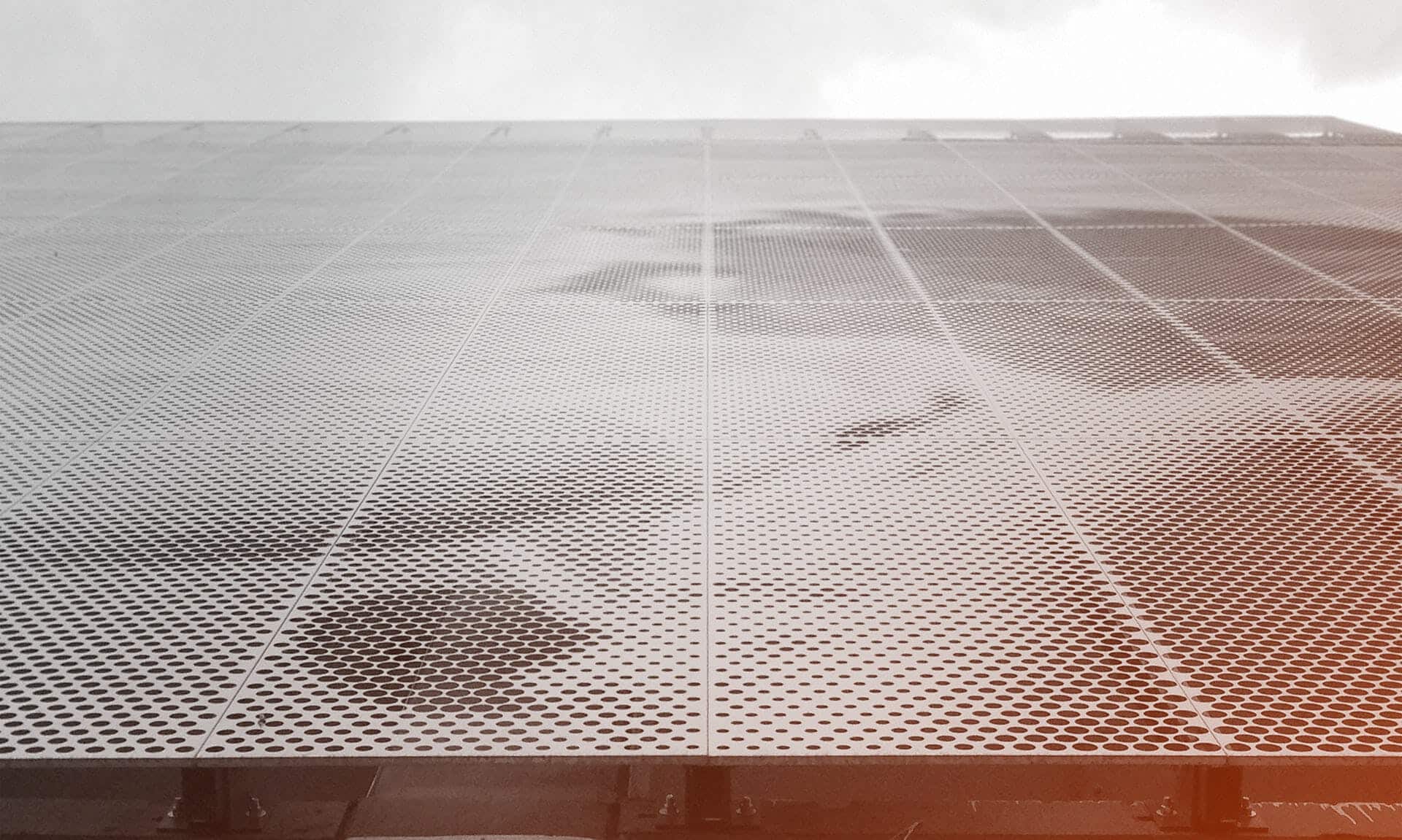

Parking garage facade designed by artist John Baldessari using ImageWall and Angel Hair Stainless Steel.

Related Project

Baldessari Facade

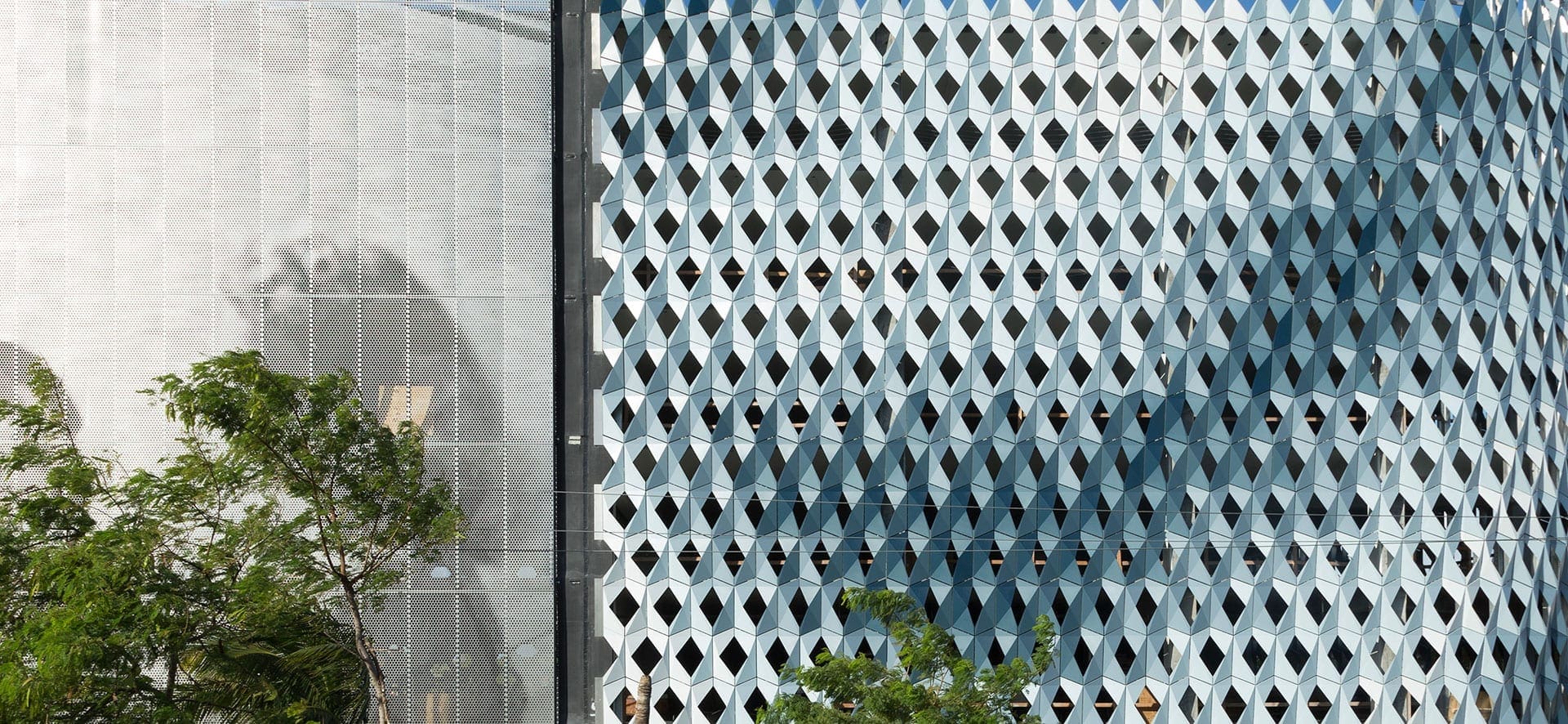

featuring Baldessari’s artwork between the Leong Leong Facade and the IwamotoScott facade.

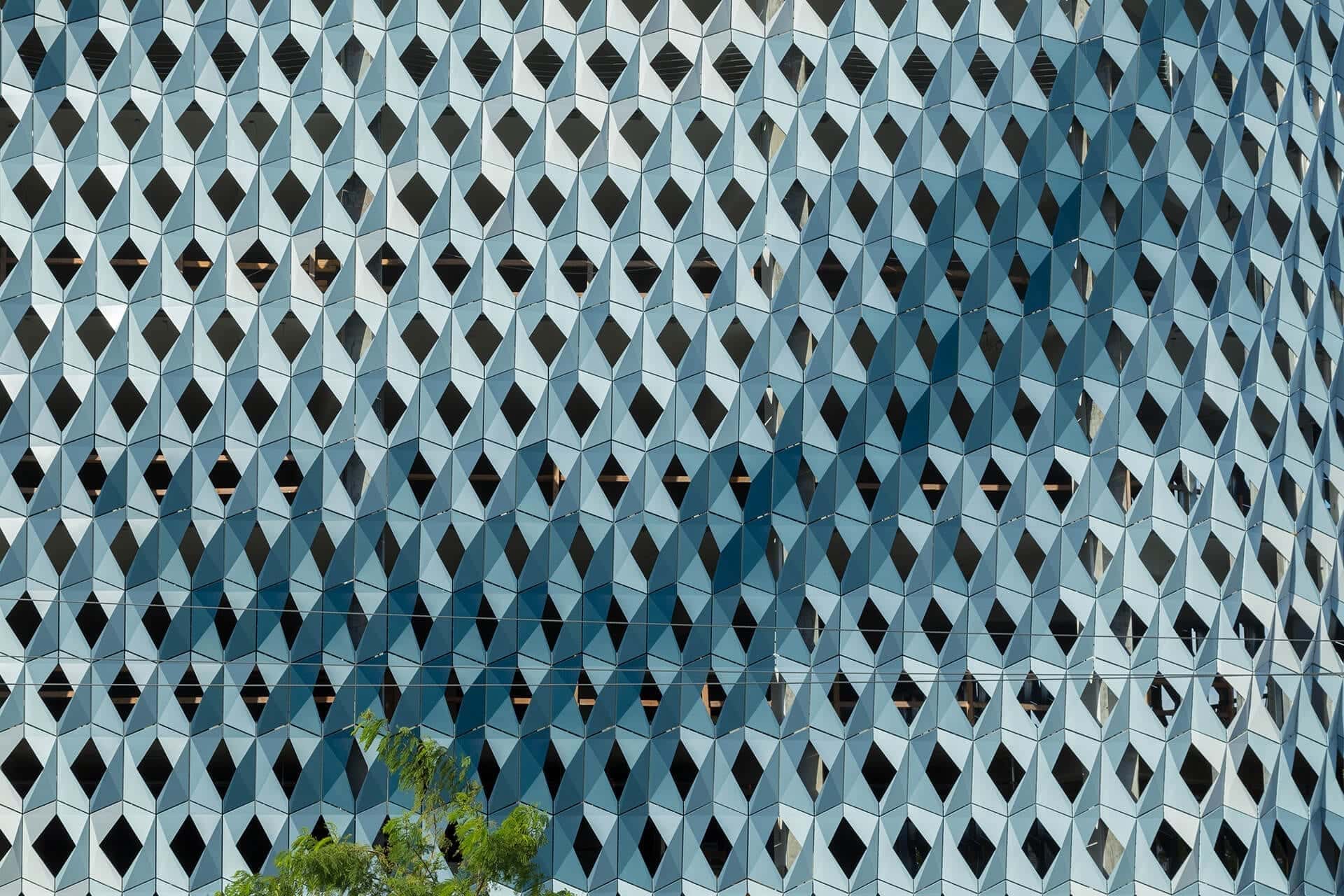

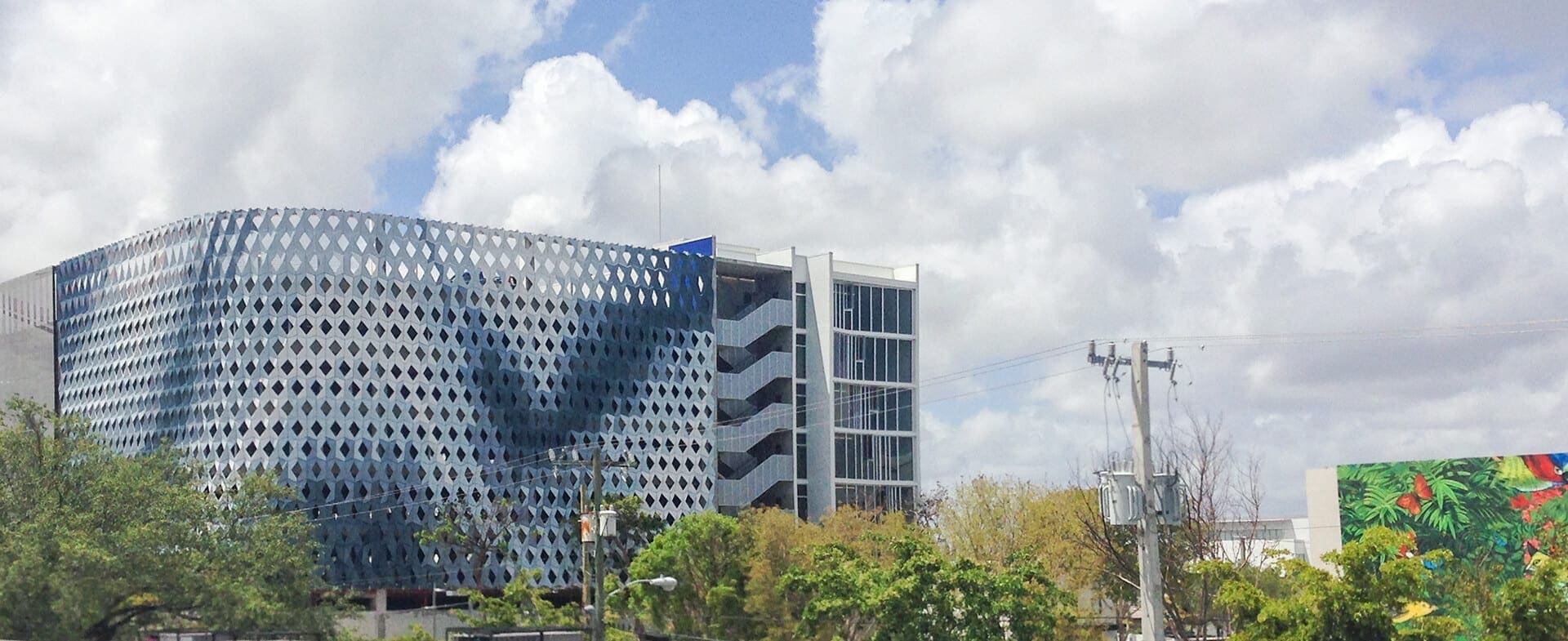

featuring Baldessari’s artwork between the Leong Leong Facade and the IwamotoScott facade. Photo of IwamotoScott Facade for the Miami Design District City View Garage

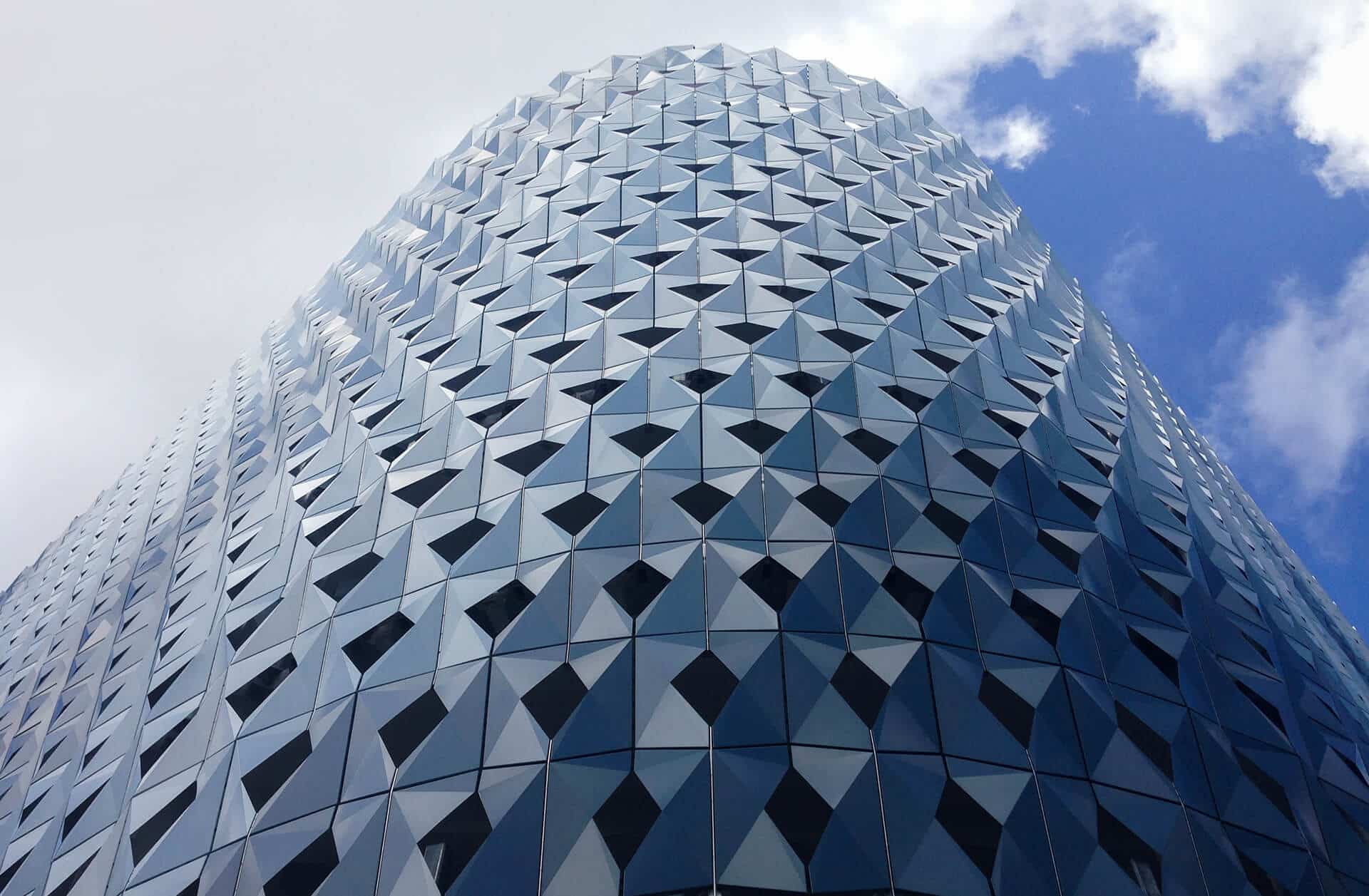

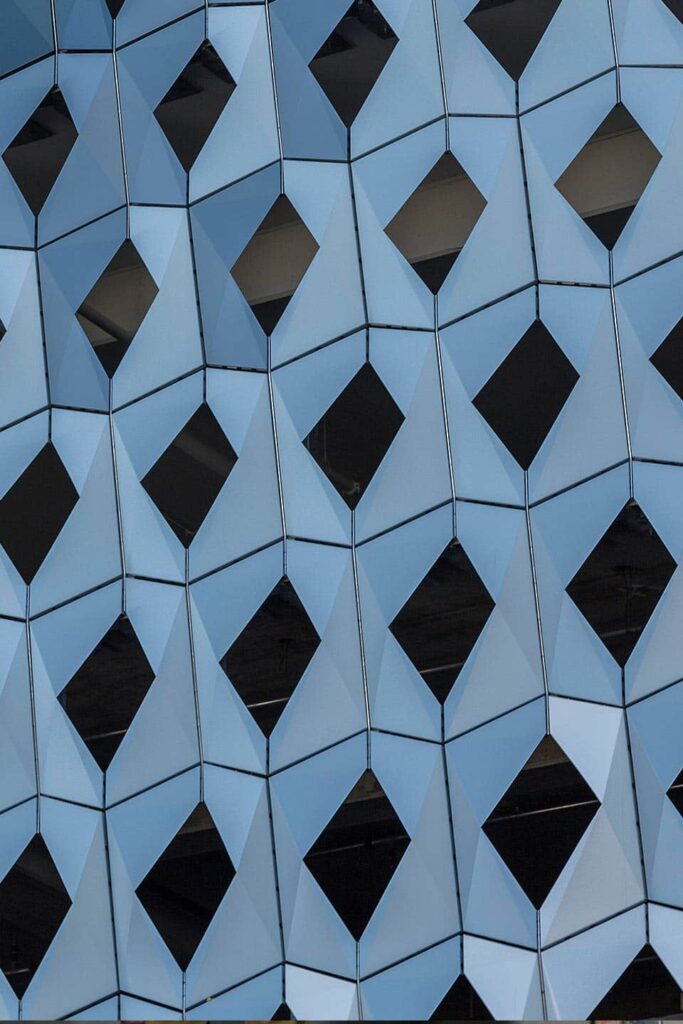

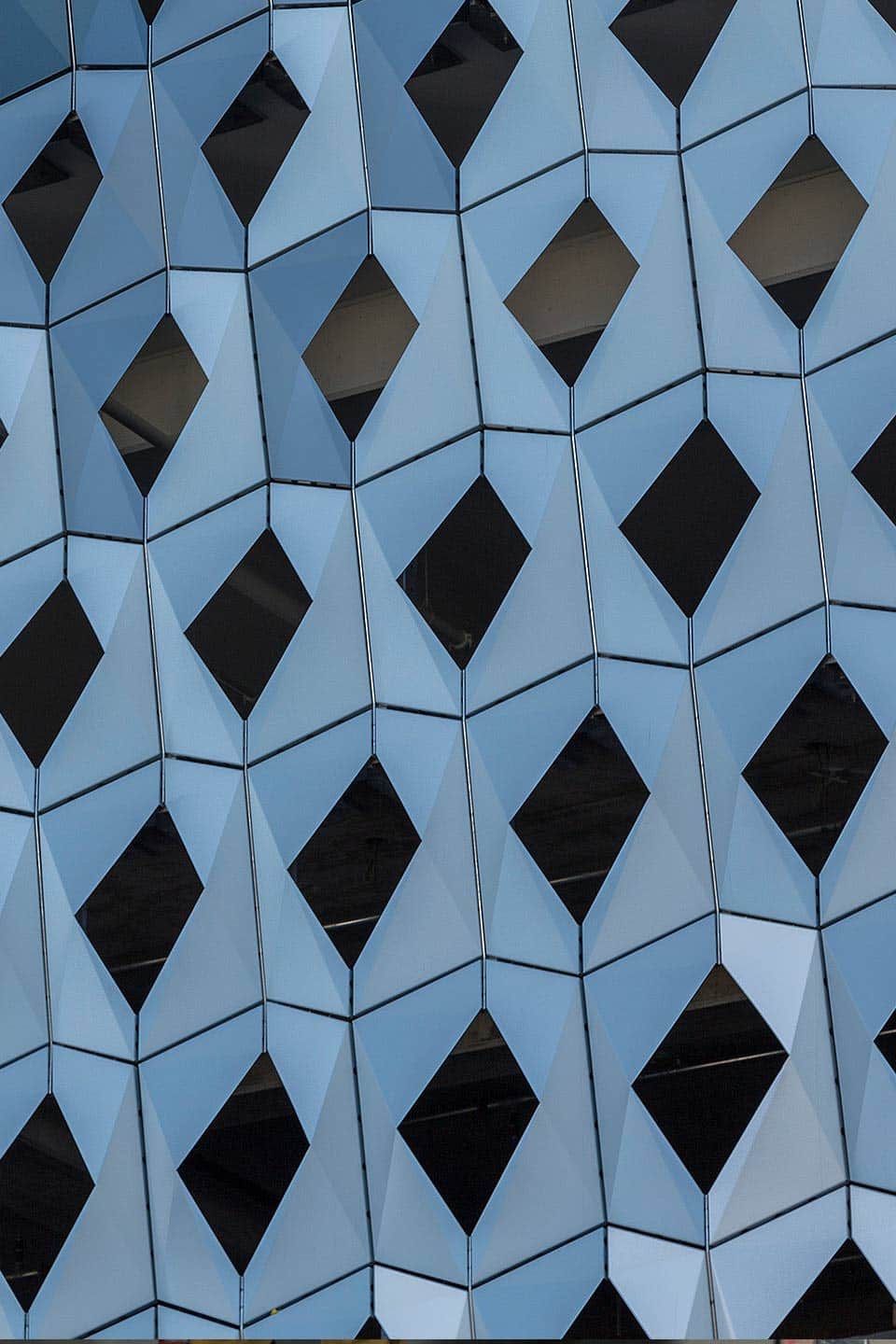

Detail of the IwamotoScott Facade for the Miami Design District City View Garage.

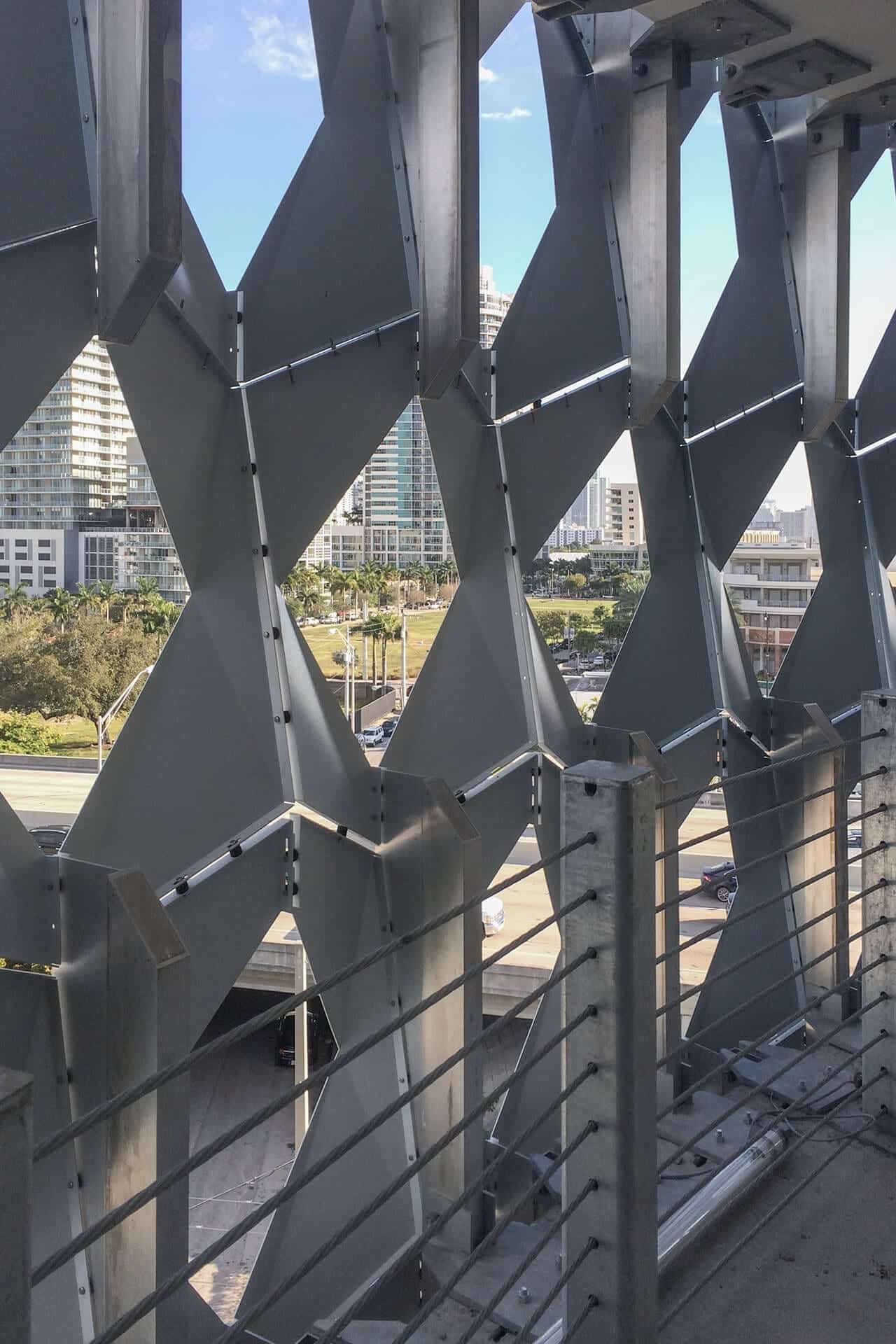

Photo © A. Zahner Co. Interior detail view of the IwamotoScott Facade for the Miami Design District City View Garage

Interior and roof view of the IwamotoScott Facade for the Miami Design District City View Garage.

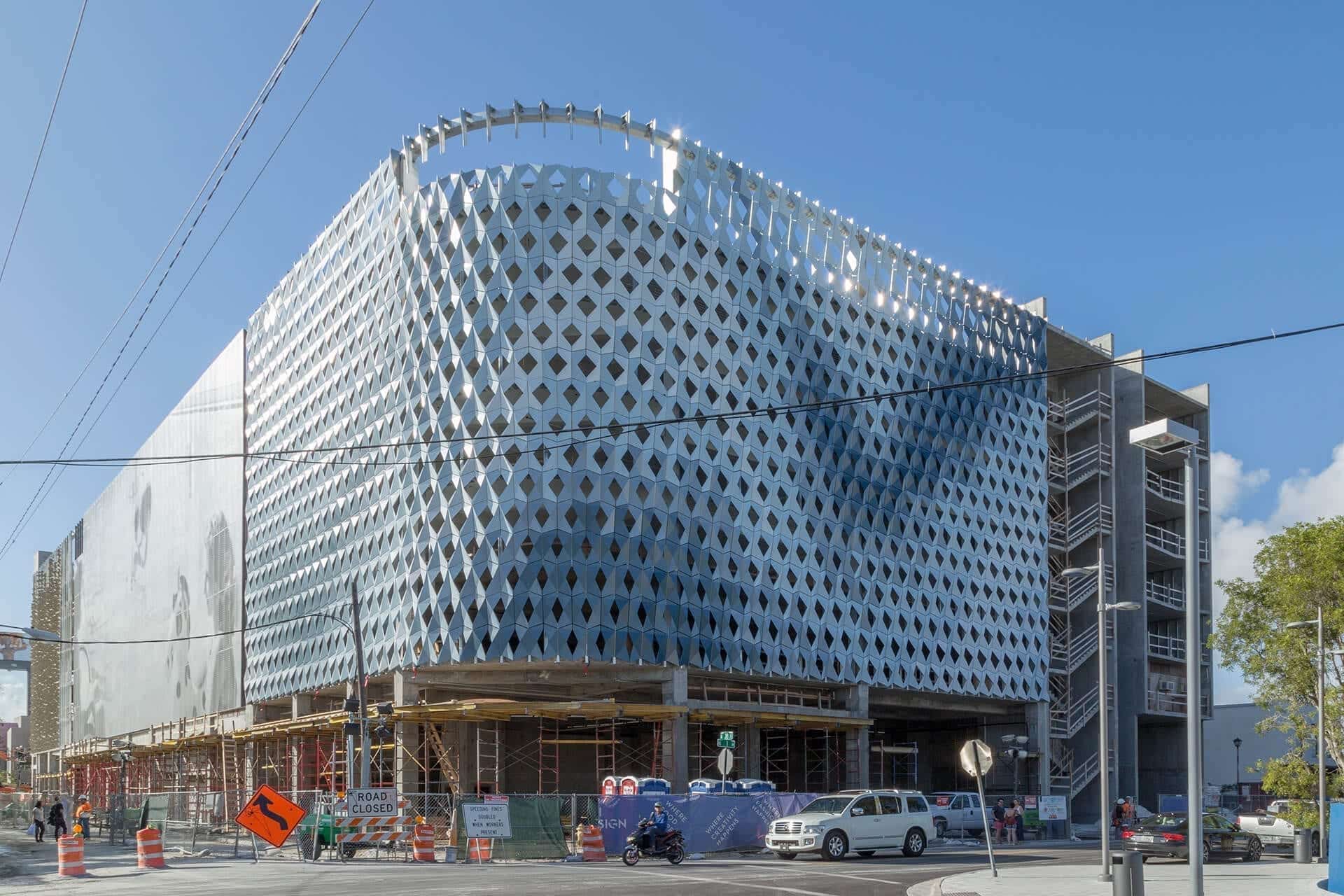

Photo © A. Zahner Company. Photograph of the IwamotoScott Facade during construction, Miami Design District City View Garage.

Photograph of the IwamotoScott Facade during construction, Miami Design District City View Garage.

PHOTO © A. ZAHNER COMPANY.

Developing the IwamotoScott facade for City View Garage

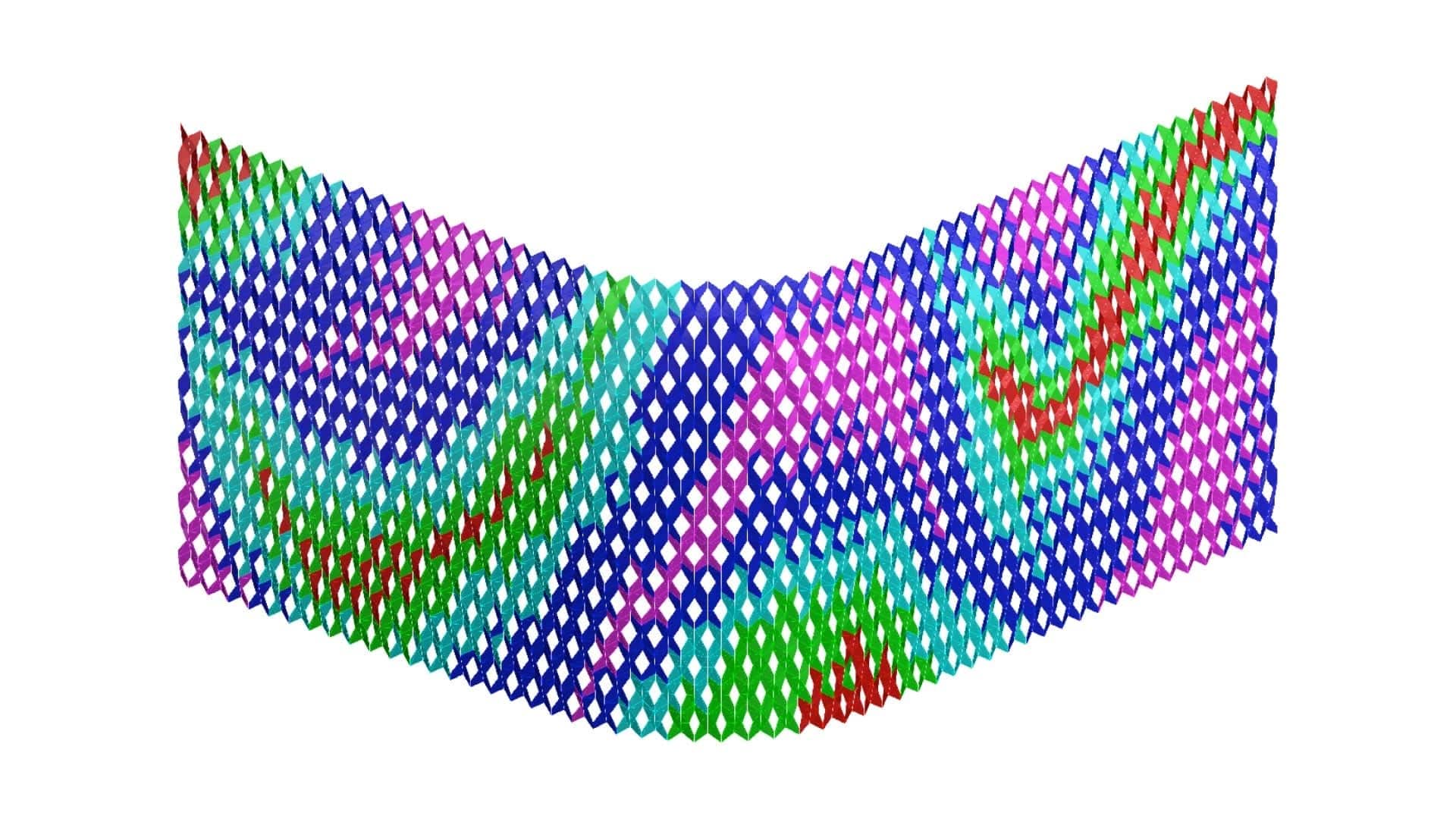

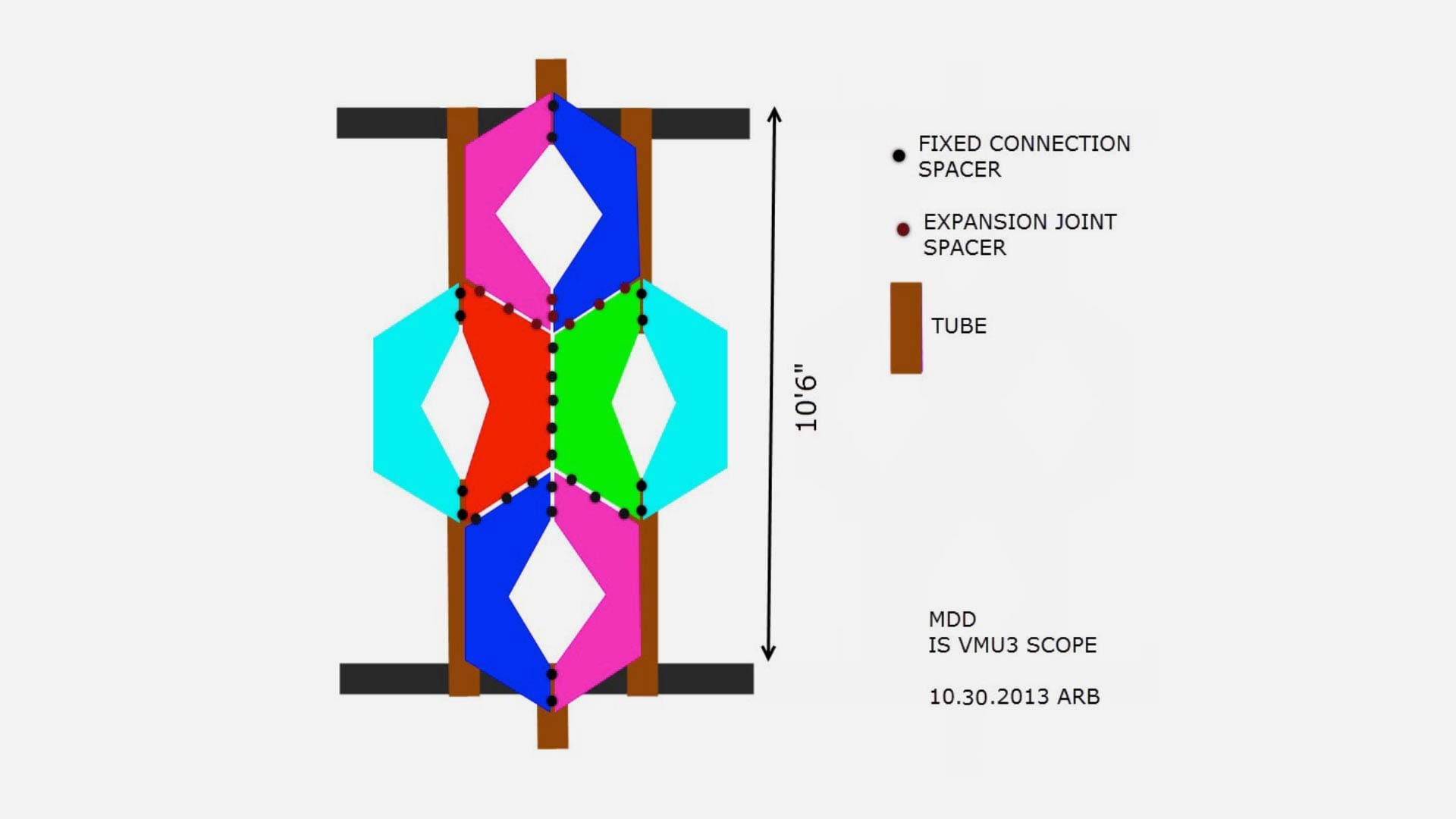

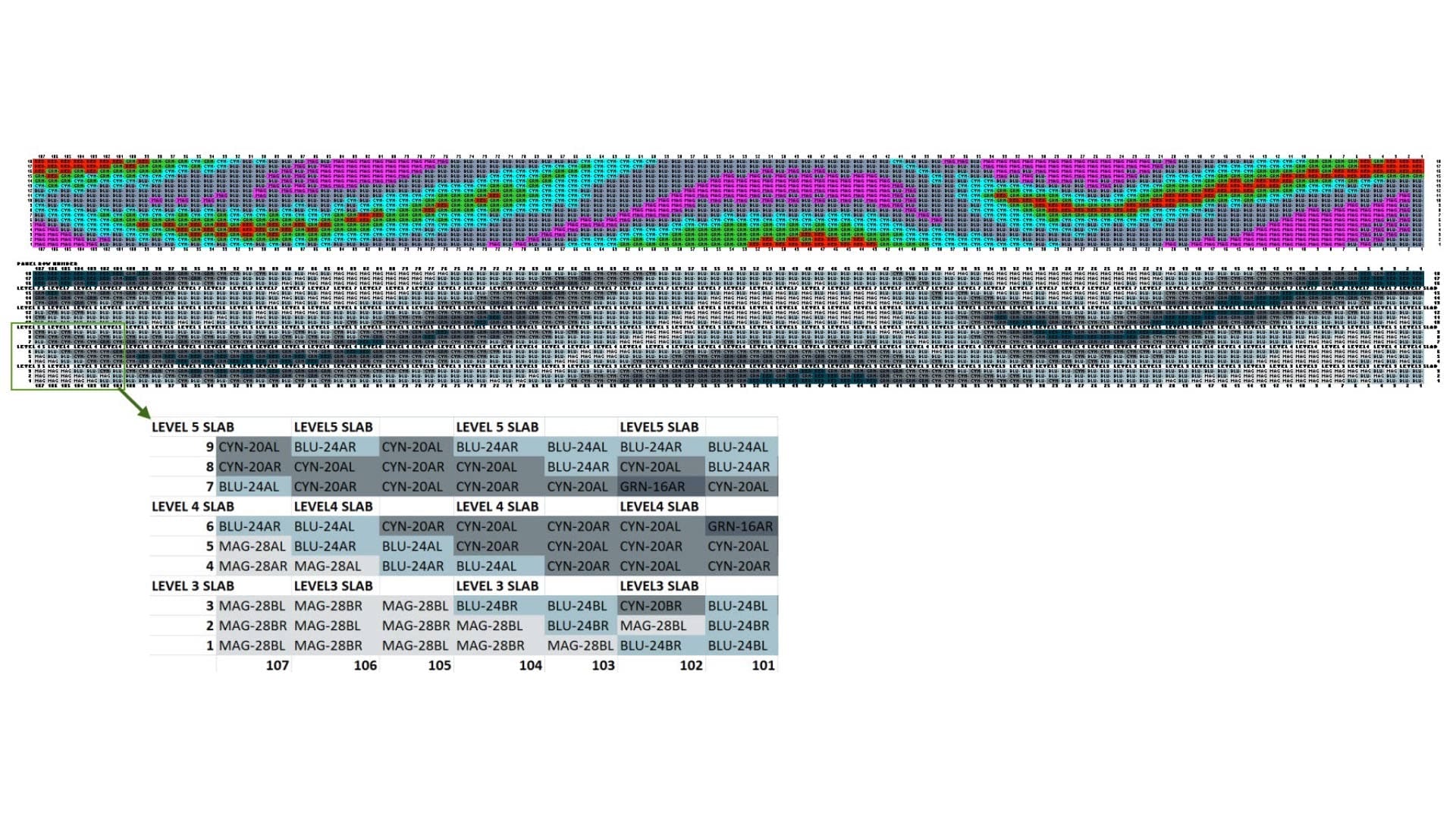

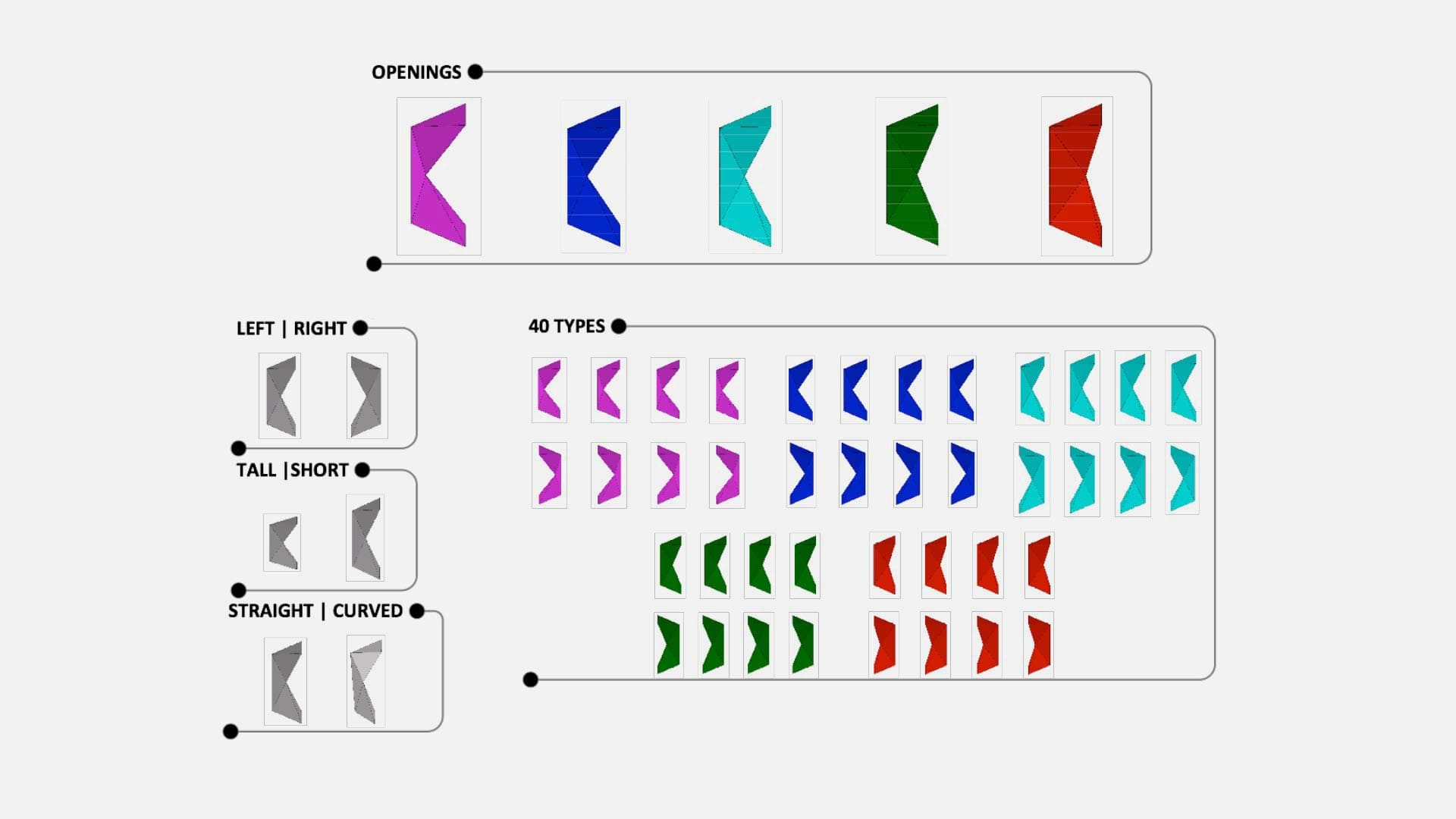

There are five different repeating modules, which are custom-fabricated by Zahner using 40 panel types. Zahner developed the modular design using powercopies to programmatically control the design’s various parts in both the operational engineering, plant, and hanging in the field.

The aluminum parts were painted using a gradient coloring scheme, which provides a subtle gradation of its five unique aperture sizes, suspended from fins which cantilever from the edges of the garage’s concrete slabs.
