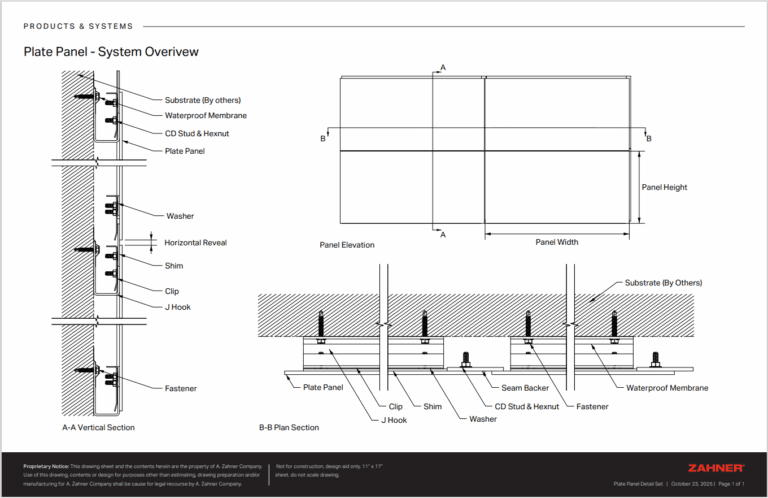

Plate Panel Detail Set – PDF
See detail drawings for Zahner’s Plate Panel System. Detail drawings include: panel elevation, horizontal joint elevation, and a typical vertical joint plan.

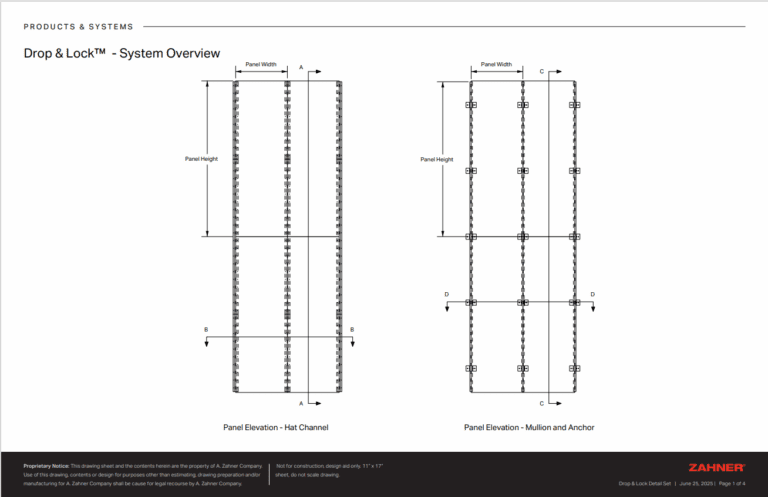

Drop & Lock CAD Details – PDF
See detail drawings for Zahner’s Drop & Lock System. Detail drawings include: panel elevation, section detail, and plan detail.

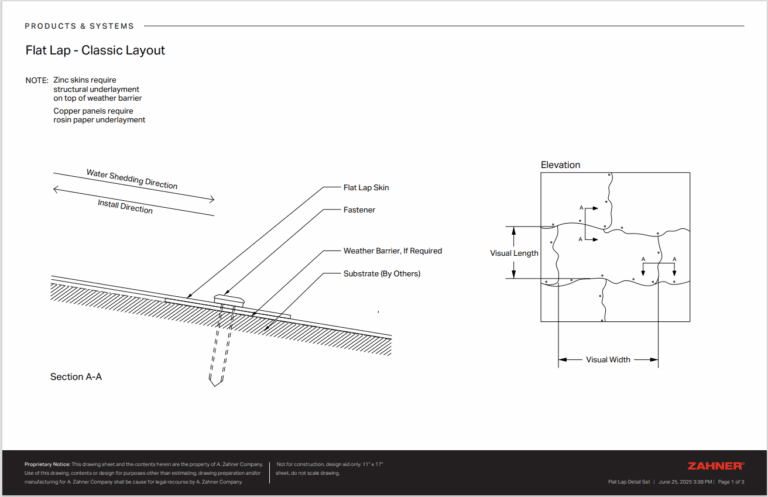

Flat Lap Panel Details – PDF
See detail drawings for Zahner’s Flat Lap Panel System. Detail drawings include: shingle & alternate shingle systems, shingle elevation, flat lap system, flat lap elevation, butt joint system, and butt joint elevation.
Drop & Lock System Datasheet
Drop & Lock is one of many solutions from Zahner providing quick, efficient and cost-effective installation of various wall systems. The solution includes structural mullions, anchor systems for attaching to walls, ceilings or structure, and you choice of Zahner wall system. The Drop & Lock system is compatible with various metals and treatments, including Zahner’s…
Plate Panel Datasheet
Plate Panel System offers a uniquely flexible matel facade system, compatible with most Zahner Surface offerings in addition to other common metals and finishes, providing an expansive pallet of materials and f inishes from which to select for you project. Variation on Zahner’s Plate Panel systems include horizontal, vertival and stacked.
