Oscura™ Blackened Steel

Blackened Patina on Steel

For Interior Applications

Products & Systems

Get Oscura ready-to-install with one of Zahner’s Standard Products or Versatile Systems — or purchase Solanum in sheets.

Standard Products
Ready to Order
Surfaces

Surfaces™

Architectural Metal Finishes

Premium Zahner materials — in steel, stainless steel, copper, and zinc.

Moda

Moda™

Modular Wall Panel System

Zahner craftsmanship for affordable, modular designs.

VERSATILE SYSTEMs
PRE-ENGINEERED, ADAPTABLE SOLUTIONS
Flat Seam

Flat Seam™

Facade Cladding System

Multiple install options for a uniform metal facade.

Flat Lap

Flat Lap™

Metal Shingle System

The simplicity of shingle and all the benefits of metal.

ImageLines

ImageLines™

Perforated Metal Panel System

Images of all kinds, rendered with rectangular perforations.

ImageWall

ImageWall®

Perforated Metal Panel System

Images of all kinds, rendered with circular perforations.

Documents

TitleFile TypeLink
Oscura™ Blackened Steel Datasheet
Sheet Material Warranty
Surfaces Instructions – Storage & Handling
Surfaces Specification

Details

Recommended Application Interior only
Base Metal (alloy) 1008A carbon steel
Standard Thicknesses 20 ga
18 ga
16 ga
14 ga
12 ga
11 ga
Approx. Decimal (mm) 0.036″ (0.91)
0.048″ (1.21)
0.060″ (1.52)
0.075” (1.90)
0.105“ (2.66)
0.120” (3.04)
Approx. Weight (lbs/ft2) 1.50
2.00
2.50
3.13
4.38
5.00
COTE (in/in/°F) 7.0 x 10-6
Standard Sizes 4’ x 10’
5′ x 10’

Sustainability

Environmental Product Declaration

An Environmental Product Declaration (EPD) is available for Oscura Blackened Steel.

These independently verified reports provide transparent data on the environmental impact of our materials, helping architects, builders, and owners achieve sustainability goals and green building certifications.

View EPD

About Oscura

Oscura is a rich, blackened steel patina designed for interior applications. Its activated steel surfaces create a unique, mottled aesthetic that varies with each sheet, offering a distinctive artistic ambiance. Sealed with a protective clear coat, Oscura resists rust and scratches caused by the interior environment, ensuring durability and elegance. This proprietary finish is ideal for feature walls, lobbies, accents, and other architectural elements.

Each Oscura sheet is one of a kind, with high variability in color patterning from sheet to sheet.

Crafted with proprietary processes, Oscura is not only a striking material but also an environmentally conscious choice. Produced in our EPA-compliant facility, its creation minimizes waste through sustainable practices. Oscura’s rich black and gray hues, achieved through specialized heating and sealing techniques, provide warmth and texture that complement diverse design palettes. Oscura is a long-lasting, stunning addition to any interior space.

Oscura Blackened Steel Manufacturing, Properties, and Applications

Oscura is more than just a beautiful material. It’s a responsible choice, made using environmentally friendly manufacturing practices in our award-winning, EPA-compliant facility. We take pride in capturing and recycling all residual bath minerals and compounds to mitigate our environmental impact.

Zahner-Oscura-Oscura_0054278

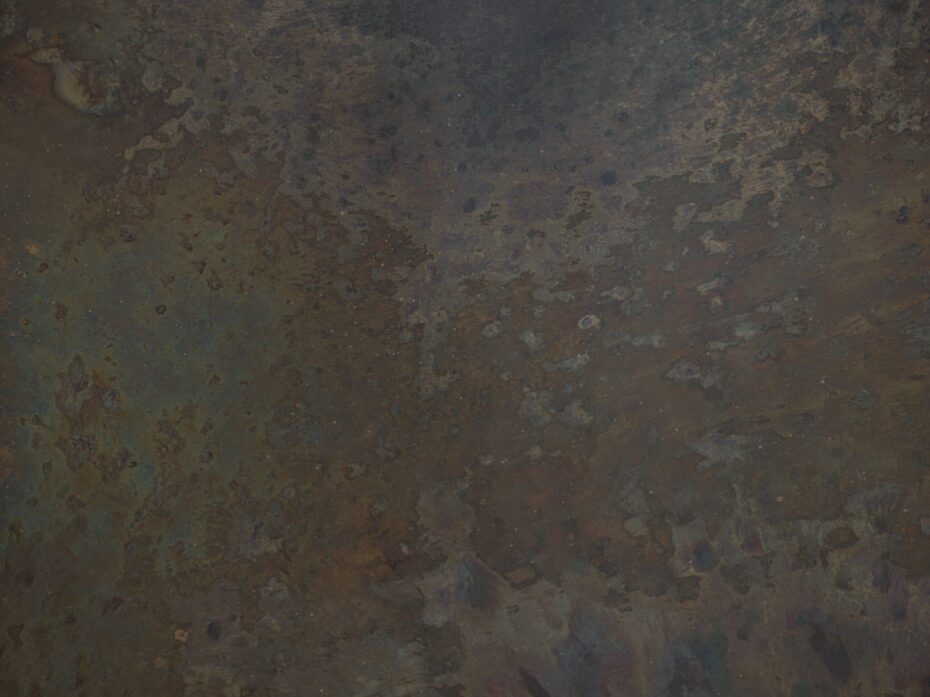

Close-up of Oscura Blackened Steel sheet material.

Photo © A. Zahner Company

The versatility of Oscura is unmatched. The dark blues of the steel, combined with the heavier carbon alloys of cast iron, create a tapestry of black and gray hues that can complement a wide range of materials and colors. From dark brown to black, the color of Oscura can vary depending on the intensity of the oxide on the surface of the steel. While the oxides produced by our proprietary alkali method are beautiful, they are also delicate and prone to abrasion. That’s why we recommend and regularly reapply appropriate protective coatings to ensure its long-lasting beauty.

Patination of Oscura Blackened Steel

The iron alloys are not commonly used in the uncoated state. Left to nature’s devices, these alloys will develop a rust oxide which will eventually corrode in entirety. The natural color of the iron alloys, when cleaned of scale and mill oil, is a dark blue-gray.

The steels have a dark blue-gray color, while the heavier carbon alloys of cast iron are almost black. Cast iron has a dark carbon-gray surface, which will weather to black. The wrought iron forms are dark blue-gray in tone. Heating blackens the surface, and subsequent shaping drives the dark tones into the surface. Wrought iron is almost always coated with a thick paint to inhibit corrosion.

Oscura Blackened Steel can be blackened or given colors ranging from dark brown to black. One such method to achieve these tones is by dipping it in a heated chemical bath. This process can develop a deep black oxide over the surface of the steel. Oxides produced by this alkali method are weak and prone to abrasion if not protected with waxes or oils. Protection against corrosion is enhanced slightly, but the base metal characteristics may cause a blackened finish on steel to fail if not continuously maintained in an indoor environment.
