San Diego Central Library

San Diego Central Library Donor Features

Signage, artworks, and architectural features designed by Luce et Studio are featured throughout the new nine-story San Diego Central Library in downtown San Diego. The features include an illuminated mast which spans four floors on the building’s North exterior, a massive-scale replica of an orchestral bow on the exterior of the ninth floor, and custom signage to celebrate the donor spaces throughout the library.

Donor Recognition

Throughout the building’s nine stories and exterior spaces are various signifiers, art elements, and architectural features which created to recognize the generous donations made by the philanthropic community in San Diego. The Central Library’s funding is unusual for a civic building, because forty percent of the costs were covered through private fund raising, including the operational costs of running the library. The private support means that the library was built with no new taxes, bonds, or moneys from the city’s general fund.

Related System

Architectural Signage

Signage and wayfinding design has transformed over the years from a purely utilitarian and informational, into art and design. Finding ways to make signage both useful and aesthetic has been a goal of the design-engineering and fabrication at Zahner for many years.

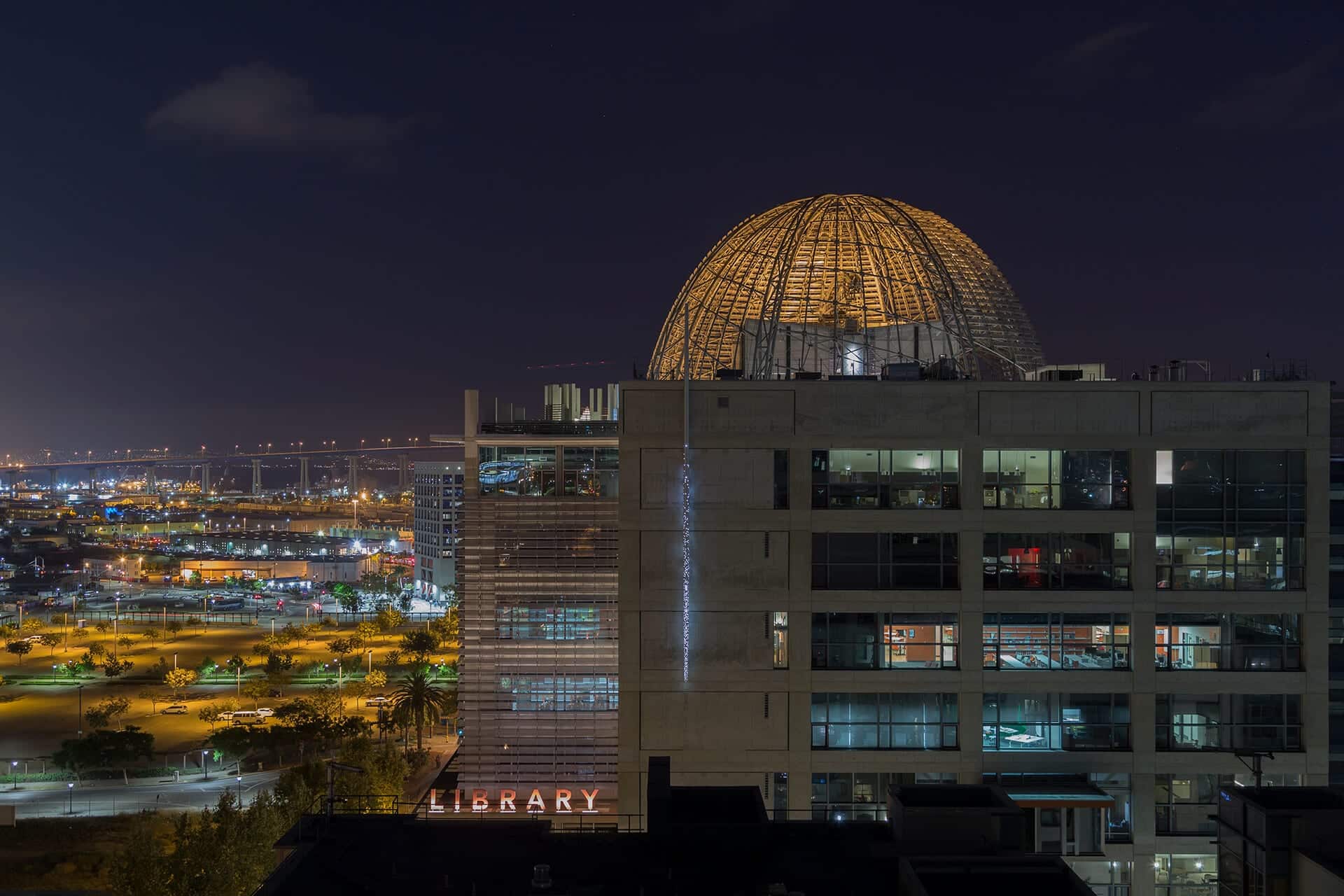

The San Diego Central Public Library at night.

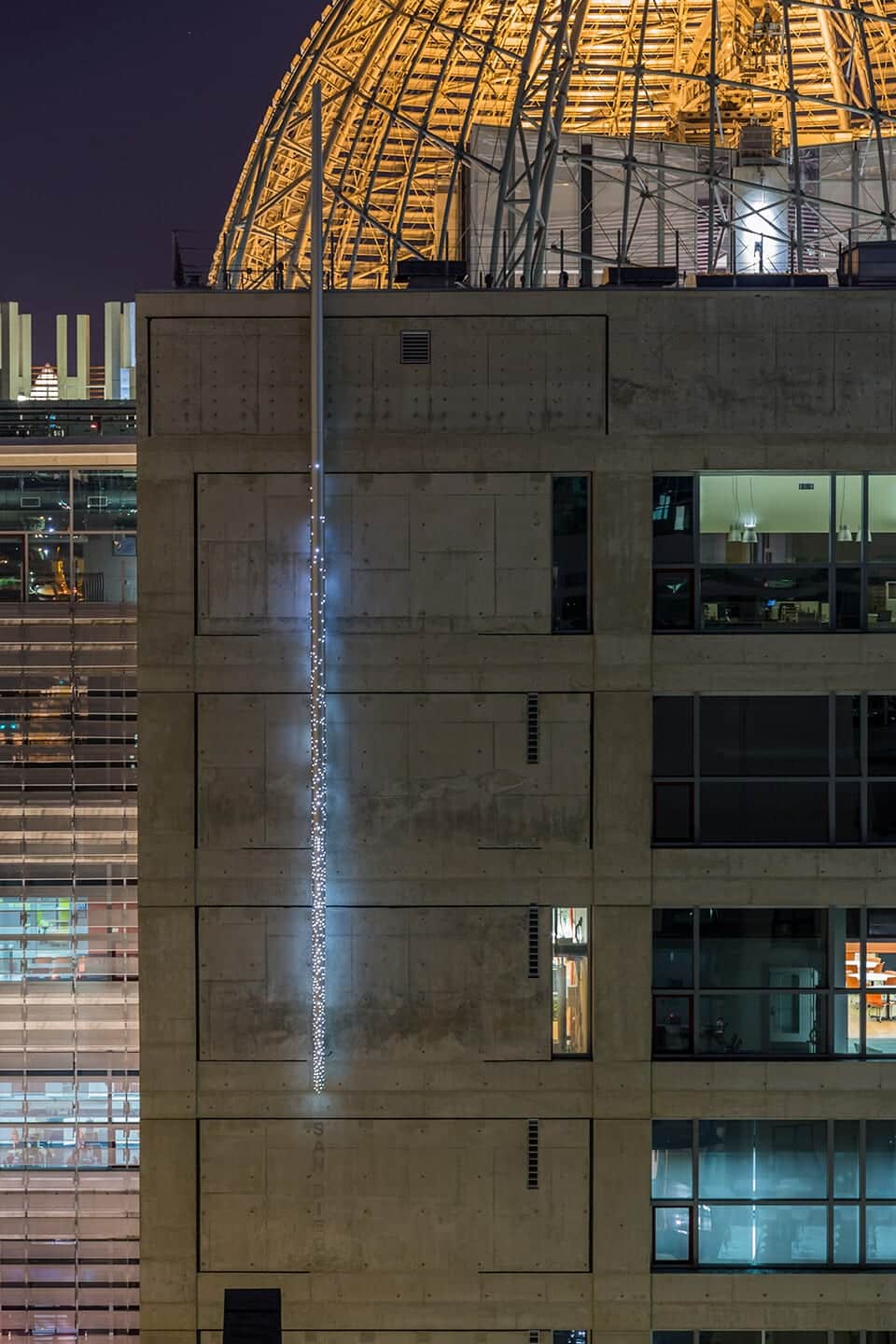

Detail of the Mast at San Diego Central Public Library.

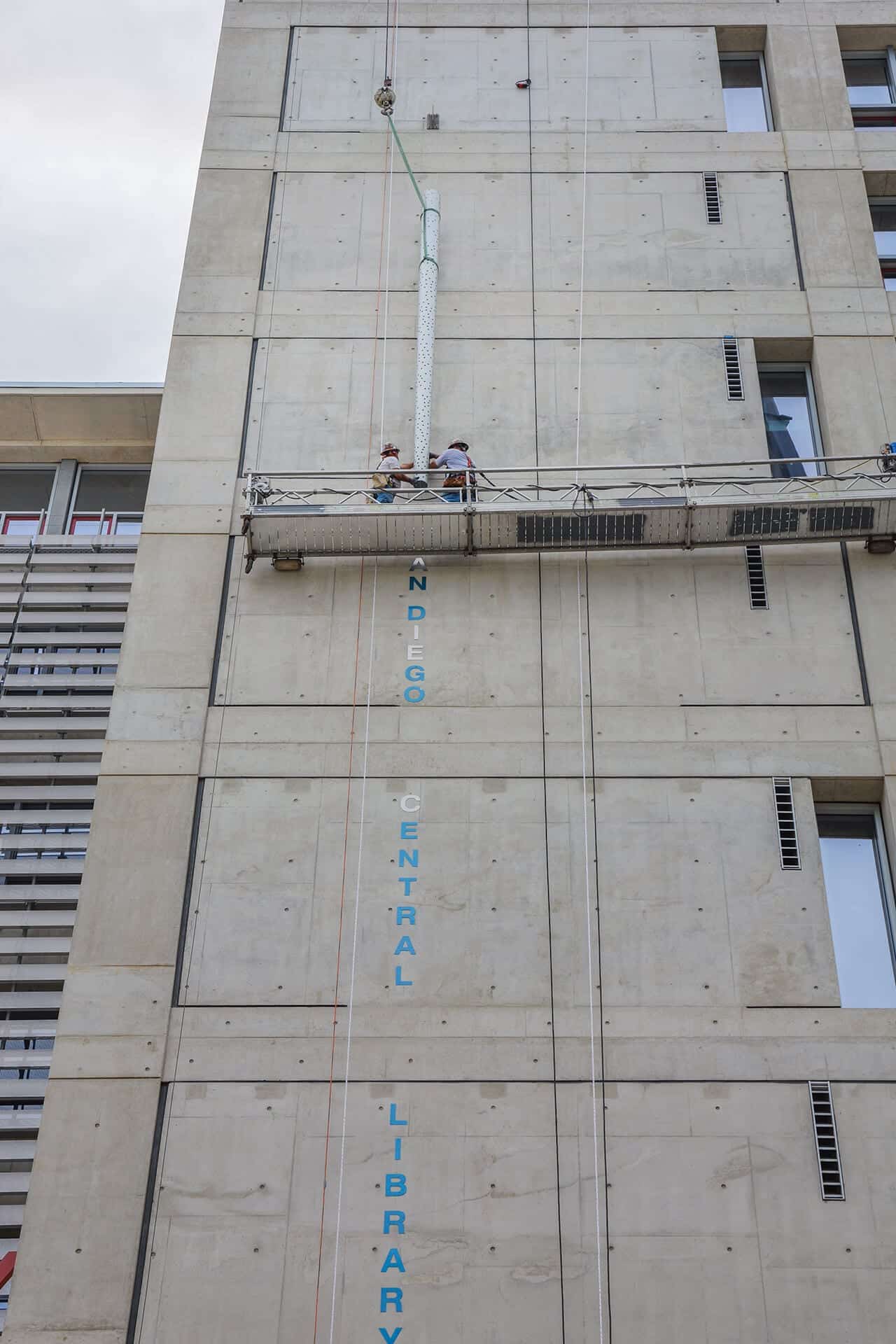

The Mast arrives in prefabricated sections at the site for the San Diego Central Library.

The Mast at San Diego Central Library

Luce et Studio’s design for The Mast for San Diego’s downtown Public Library was designed as a 70′ tall aluminum column, whose diameter ranges from 8′ at its top and bottom, and 12′ at its median.

The Mast is constructed in aluminum with varying perforations which run up around its length. Inside of the mast is an interior LED lighting system, which provides a beacon of star-studded lights which illuminates the facade throughout the evening hours. The mast was manufactured by Zahner in Kansas City, and installed by a local team in San Diego.

The Violin Bow at San Diego Central Library

One of the donors recognized by the Museum is the late Helen Price whose continued philanthropic giving to the museum was recognized by a 30‘ scale orchestral bow to celebrate the San Diego figure’s love for the symphony.

The bow is made using stainless steel and structural cable. Both the bow and the mast were manufactured by Zahner with design support from Wallace Engineering.

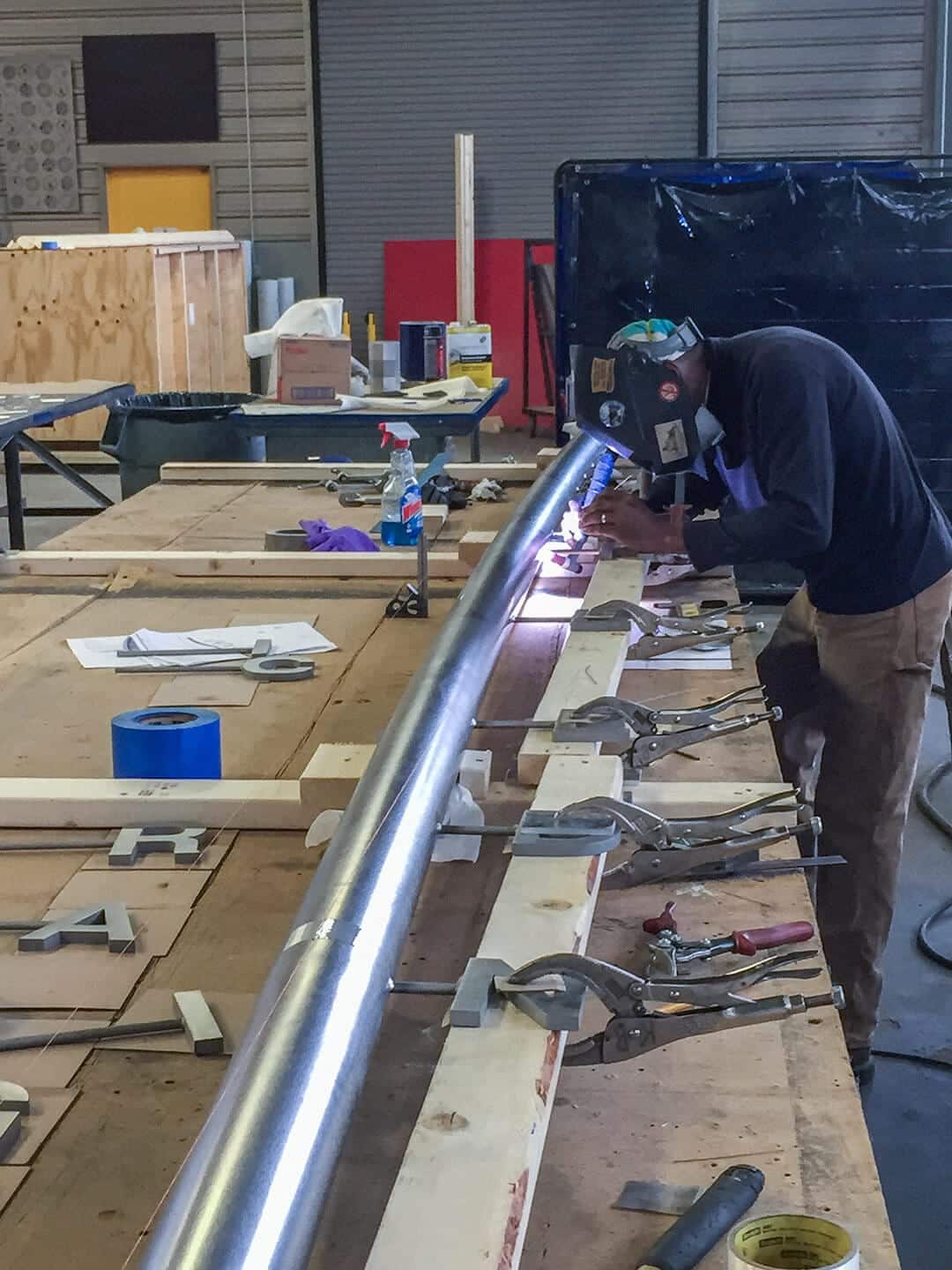

Fabricators at Zahner manufacture the signage and donor recognition for the SDCL Violin Bow.

Local installers place the violin bow and donor recognition for the Helen Price Reading Room at SDCL.

The Helen Price Reading Room violin bow artwork, by Luce et Studio at SDCL.

Detail of the head plate for the finished violin bow artwork at San Diego Central Library.

Detail of the Helen Price Reading Room violin bow artwork, by Luce et Studio at SDCL.

Joan & Irwin Jacobs Common

At the building’s South entrance are multiple signage elements for the San Diego Library Joan & Irwin Jacobs Common, recognizing the philanthropist team who donated $20 million towards the library’s operational costs.

The technique used to create the building’s southern pedestrian level signage is a signature style developed by Luce et Studio on an unrealized project for Hotel James (pictured below). The signage concept was developed by Jennifer Luce to create a third dimension for the cut-out letter shapes. Zahner manufactures a groove in each of the letters, which allows the letter to then be folded out. The concept was first created years prior, and is featured prominently as a notable signage display for the San Diego Central Library.

Custom signage concept designed by Luce et Studio for an unrealized Hotel James. The letters, laser cut from stainless steel, become three dimensional louvers, connected by a small tab.

San Diego Central Library signage with custom ornamental detailing.

Joan ? Irwin Jacobs Common donor plaque and signage for San Diego Central Library.

Joan and Irwin Jacobs Common donor plaque and signage for San Diego Central Library.

Library Bar Code Signage

One of the themes that moves throughout the entirety of the library is a bar code motif, extruding from the letter forms of various donor plaques and signage elements on both the interior and exterior surfaces of the library. The extruded letter forms also break planes and wrap around columns, walls, and concrete boundaries.

The thick metals used in the custom signage include stainless steel and bronze, and included areas that are painted, as well as areas that let the metal surface shine through, much of which uses Zahner’s Angel Hair mechanical non-directional surface treatment.

Donald C. & Elizabeth M Dickinson Popular Library ornamental donor signage for SDPL Central Library.

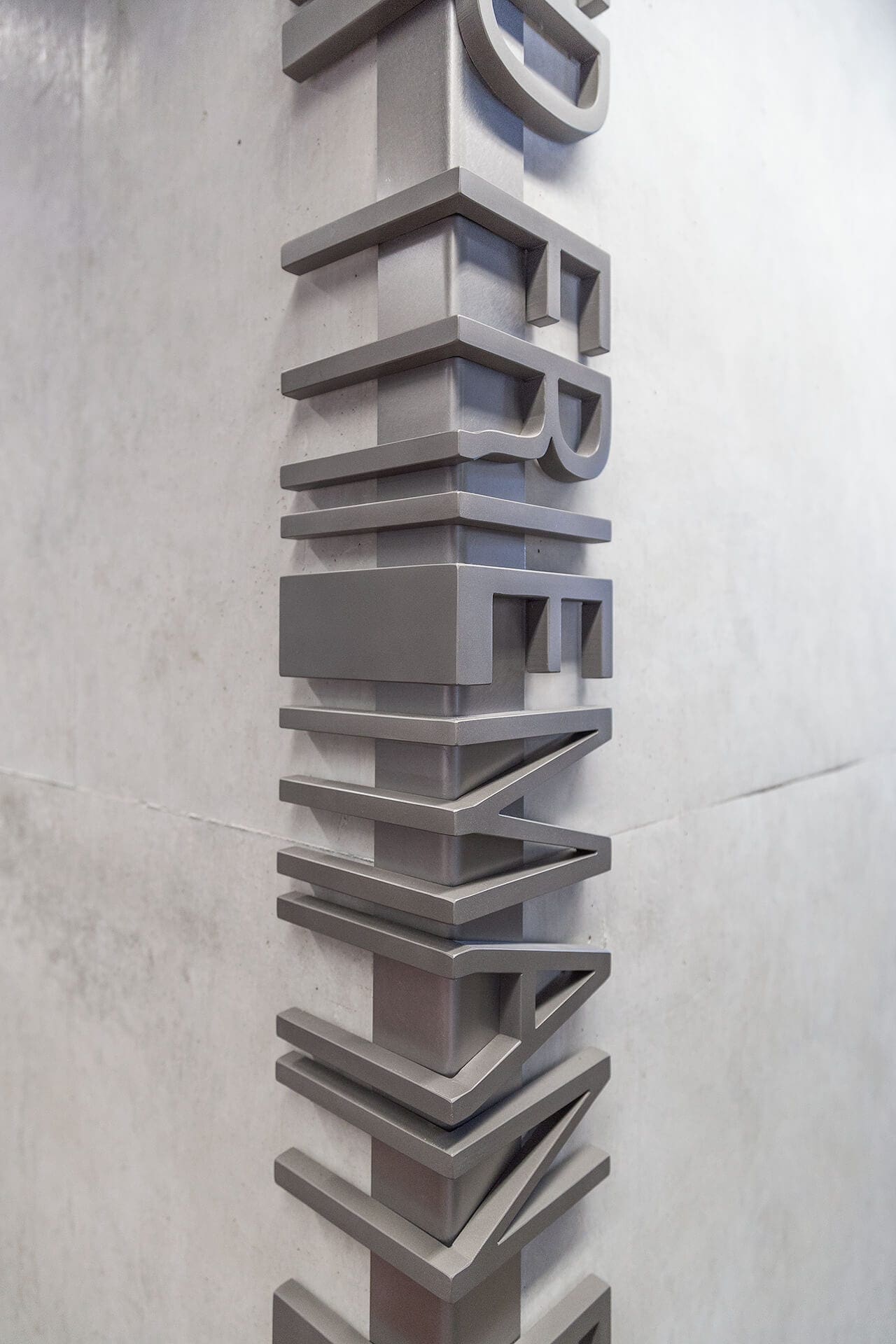

Exploration Floor signage recognizing the donation of Joy & Ed Frieman .

Custom donor signage for the San Diego Central Library.

Custom donor signage for the Pauline Foster Family Teen Center at San Diego Central Library.

Custom signage for the San Diego Central Library.

Joan ? Irwin Jacobs Common signage donor recognition for the San Diego Central Library .

Shiley Special Events Suite

One of the final donors donors for the new library, Darlene Shiley placed $1.2 million towards the library’s operational fund, and her donation is honored with a rooftop events suite. The entrance to the space is clad in interference stainless steel, perforated using a custom pattern. The Zahner system used to lay out the decorative metal screen panels is based on the ImageWall/ZIRA system, which also provides for a muted seam where the perforations continue across the joint’s reveal.
