Moda: Modular Wall Panel System

Where modular design meets metal craftsmanship. Create unique wall effects and interesting spaces with Moda’s clean, modern, and flexible metal panels.

Moda offers designers and architects the patinas, patterns, and finishes of Zahner metals in four mix-and-match panel sizes. Its clean, modern lines provide symmetry and order in various metal textures and colors, from moderately reflective to muted and earth-toned. Easily specified, ordered, and installed, Moda is a cost-effective and convenient way to add visual interest and durability with flexibility and economy.

1 2 3 4

A Fast and Flexible System

Features

Moda has been carefully designed to capitalize on the benefits of modern manufacturing while remaining flexible enough to allow architects, designers, and specifiers to realize their unique visions. Vertical, horizontal, and mixed arrangements of Moda panels provide a number of options that can work in any space, including lobbies, courtyards, conference rooms, facades, and other interior or exterior partitions and enclosures.

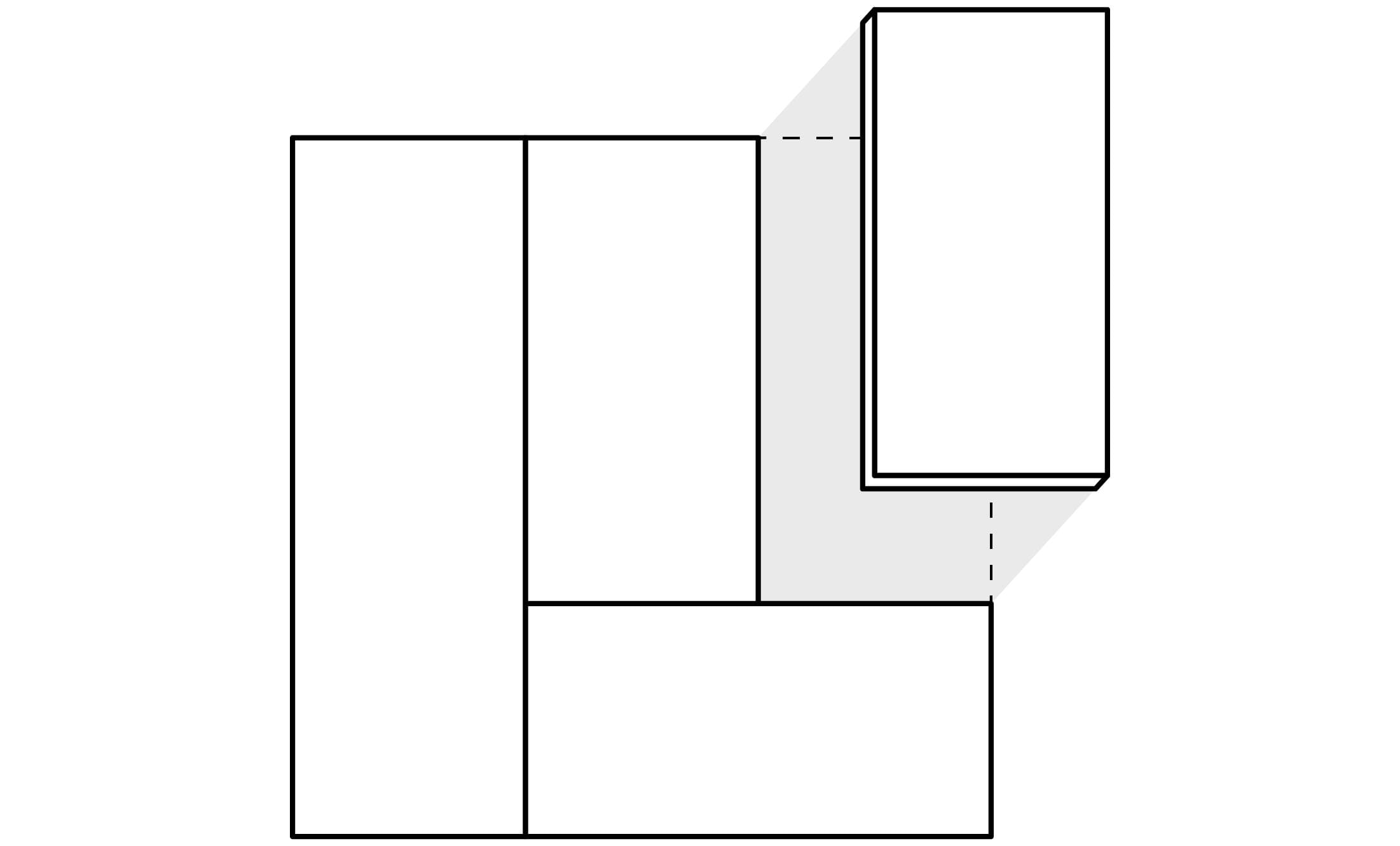

Modular Design

Customize your space by creating any number of panel arrangements using Moda. Rotate panels in 90-degree increments, combine multiple panel sizes, or mix and match materials and patterns for unique installations.

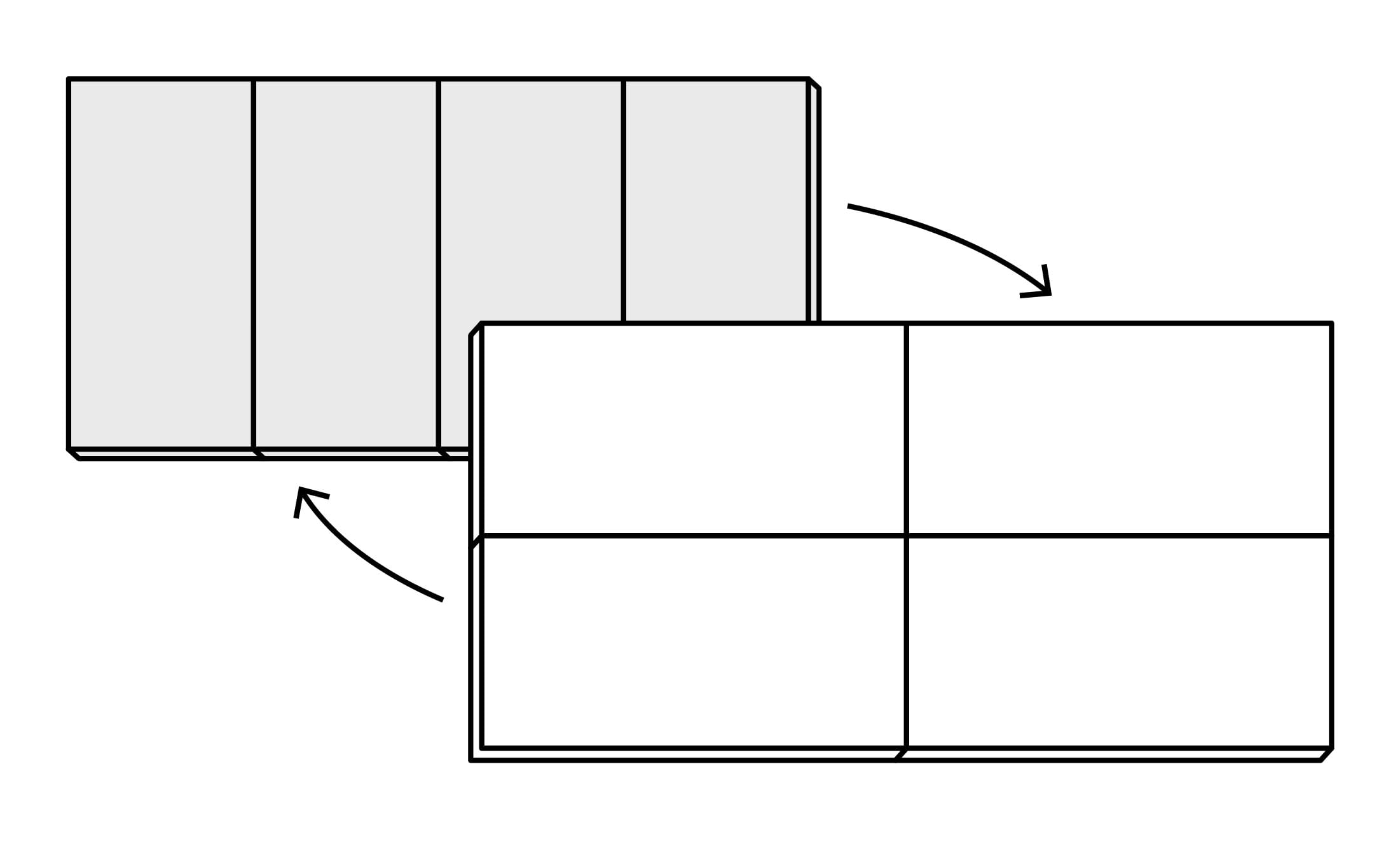

Reconfigurable

Moda panels can be easily uninstalled, rearranged, and reinstalled to freshen a space, helping reduce the carbon footprint in the event of future renovations. It also means that panels can be replaced and added as necessary without removing the entire system.

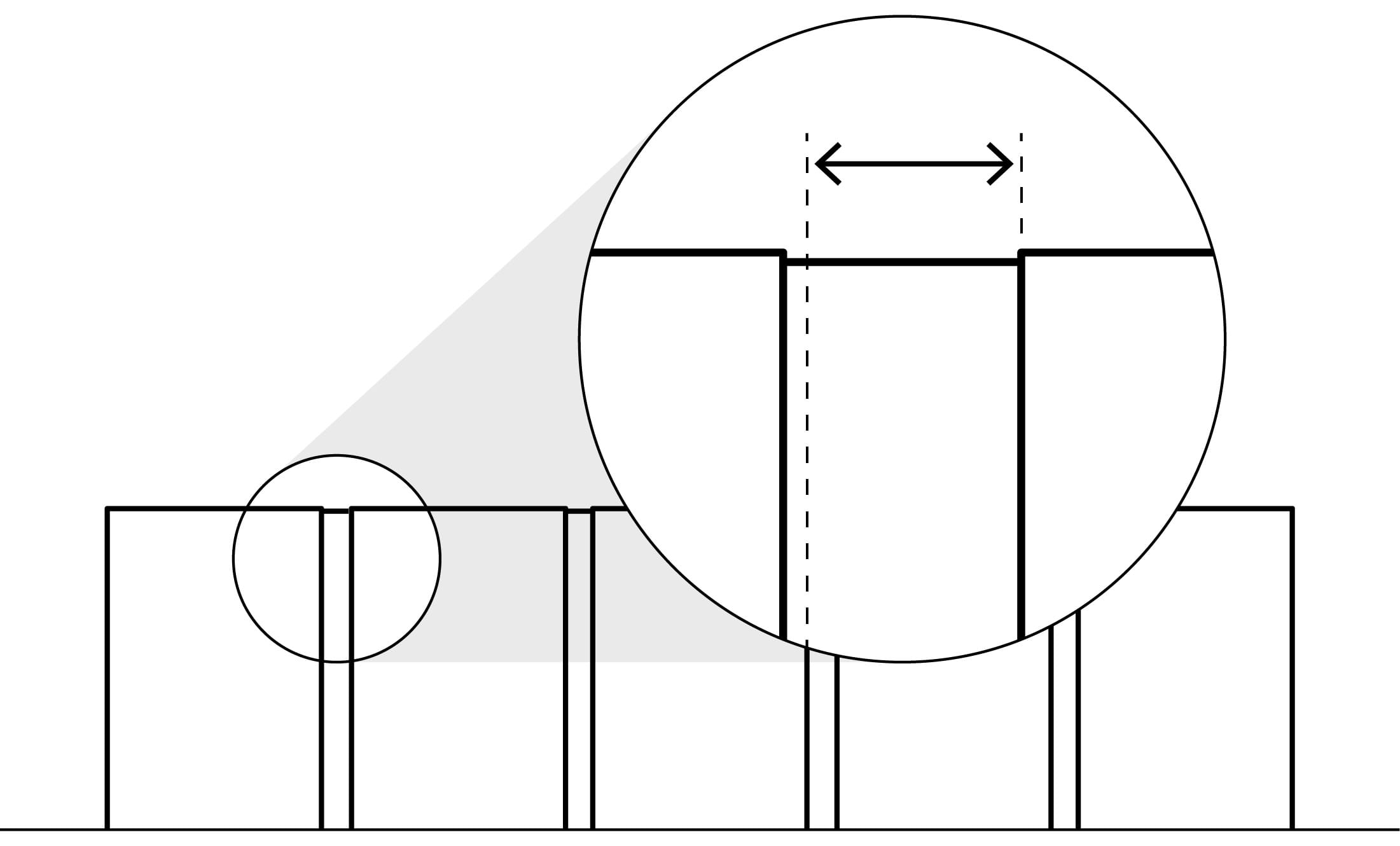

Adaptable

Moda arrays can be installed with varying vertical reveal widths to better fit any wall. Moda reveals range from .25” up to 3” without revealing hardware components or wall fasteners.

Easy Installation

Once the Moda hardware is fastened to your substrate and brought into alignment, panels are easily hung using the hook-and-slot features. This makes Moda panels simple to install, align, and remove if maintenance is required.

See how Moda panels interact with the Moda mounting substrate in the animation below, which provides a view from the back of the panel system.

1 2 3

A Palette of Metals

Finishes

Moda is available in classic Zahner Surfaces, including:

Solanum Steel™

Pre-oxidized weathering steel

Oscura Blackened Steel™

Patinated steel

Spectura Steel™

Patinated steel

1e917357-84f5-4451-886f-760780379e2e_angelhair-stainless-detail-2

Angel Hair Stainless Steel®

Diffuse finish on stainless steel

Dirty Penny Copper™

Preweathered patina on copper

40082cba-3ae1-4f73-98c4-ca9df8994e4f_zahner-materials-star-blue-detail-1

Star Blue Copper™

Preweathered patina on copper

Baroque Zinc™

Patinated zinc

Hunter Zinc™

Patinated zinc

Roano Zinc™

Patinated zinc

The Moda Story

About Moda

Watch and listen as Zahner’s Director of Products, Matt Sutton shares the story behind Moda and how it’s bringing Zahner’s extraordinary finishes, patinas, and designs to spec-friendly modular metal panels.

Product Information

Specs & Info Details

Title	File Type	Link
Moda Detail Set	pdf	Download
Moda Installation Manual	pdf	Download
Moda Order Form	pdf	Download
Moda Product Datasheet	pdf	Download
Moda Product Warranty	pdf	Download
Moda Specification	docx	Download

	36 Inch	54 Inch	90 Inch	108 Inch
Panel Height, in	35.75	53.75	89.75	107.75
Panel Width, in	17.75	17.75	17.75	17.75
Panel Depth, in	2.26	2.26	2.26	2.26
System Depth, in	3.25	3.25	3.25	3.25
Approximate Panel Weight, lbs
• Angel Hair Stainless Steel	11	16	26	32
• Solanum Steel	16	24	39	47
• Oscura Blackened Steel	13	19	32	38
• Spectura Steel	13	19	32	38
• Dirty Penny Copper	13	19	32	38
• Star Blue Copper	13	19	32	38
• Baroque Zinc	11	16	27	32
• Hunter Zinc	11	16	27	32
• Roano Zinc	11	16	27	32
Horizontal Reveal Height, in	0.25	0.25	0.25	0.25
Vertical Reveal Width, in	0.25 – 3.00*	0.25 – 3.00*	0.25 – 3.00*	0.25 – 3.00*
Minimum Clearance Above Top Panel, in	1.00	1.00	1.00	1.00
Hardware. Height, in	107.63	107.63	107.63	107.63
Reveal Cover Height, in	107.75	107.75	107.75	107.75

Specs & Info

Title	File Type	Link
Moda Detail Set	pdf	Download
Moda Installation Manual	pdf	Download
Moda Order Form	pdf	Download
Moda Product Datasheet	pdf	Download
Moda Product Warranty	pdf	Download
Moda Specification	docx	Download

Details

36 Inch

Panel Height, in : 35.75
Panel Width, in : 17.75
Panel Depth, in : 2.26
System Depth, in : 3.25
Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 11
- Solanum Steel : 16
- Oscura Blackened Steel : 13
- Spectura Steel : 13
- Dirty Penny Copper : 13
- Star Blue Copper : 13
- Baroque Zinc : 11
- Hunter Zinc : 11
- Roano Zinc : 11
Horizontal Reveal Height, in : 0.25
Vertical Reveal Width, in : 0.25 – 3.00*
Minimum Clearance Above Top Panel, in : 1.00
Hardware Height, in : 107.63
Reveal Cover Height, in : 107.75

54 Inch

Panel Height, in : 53.75
Panel Width, in : 17.75
Panel Depth, in : 2.26
System Depth, in : 3.25
Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 16
- Solanum Steel : 24
- Oscura Blackened Steel : 19
- Spectura Steel : 19
- Dirty Penny Copper : 19
- Star Blue Copper : 19
- Baroque Zinc : 16
- Hunter Zinc : 16
- Roano Zinc : 16
Horizontal Reveal Height, in : 0.25
Vertical Reveal Width, in : 0.25 – 3.00*
Minimum Clearance Above Top Panel, in : 1.00
Hardware Height, in : 107.63
Reveal Cover Height, in : 107.75

90 Inch

Panel Height, in : 89.75
Panel Width, in : 17.75
Panel Depth, in : 2.26
System Depth, in : 3.25
Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 26
- Solanum Steel : 39
- Oscura Blackened Steel : 32
- Spectura Steel : 32
- Dirty Penny Copper : 32
- Star Blue Copper : 32
- Baroque Zinc : 27
- Hunter Zinc : 27
- Roano Zinc : 27
Horizontal Reveal Height, in : 0.25
Vertical Reveal Width, in : 0.25 – 3.00*
Minimum Clearance Above Top Panel, in : 1.00
Hardware Height, in : 107.63
Reveal Cover Height, in : 107.75

108 Inch

Panel Height, in : 107.75
Panel Width, in : 17.75
Panel Depth, in : 2.26
System Depth, in : 3.25
Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 32
- Solanum Steel : 47
- Oscura Blackened Steel : 38
- Spectura Steel : 38
- Dirty Penny Copper : 38
- Star Blue Copper : 38
- Baroque Zinc : 32
- Hunter Zinc : 32
- Roano Zinc : 32
Horizontal Reveal Height, in : 0.25
Vertical Reveal Width, in : 0.25 – 3.00*
Minimum Clearance Above Top Panel, in : 1.00
Hardware Height, in : 107.63
Reveal Cover Height, in : 107.75

Get Modular

Transform Your Project with Moda

Get a Quote Get Finish Samples Contact Sales

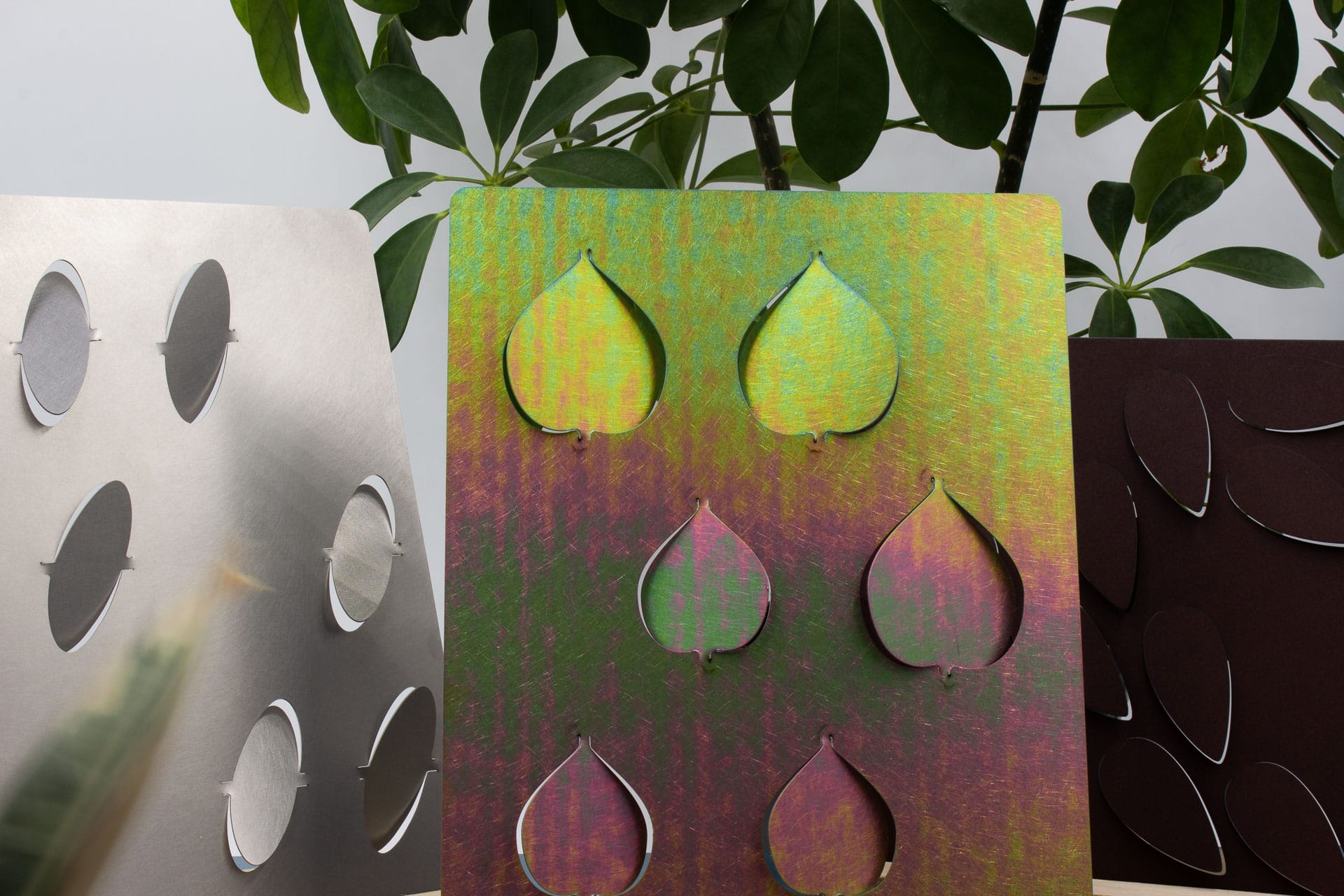

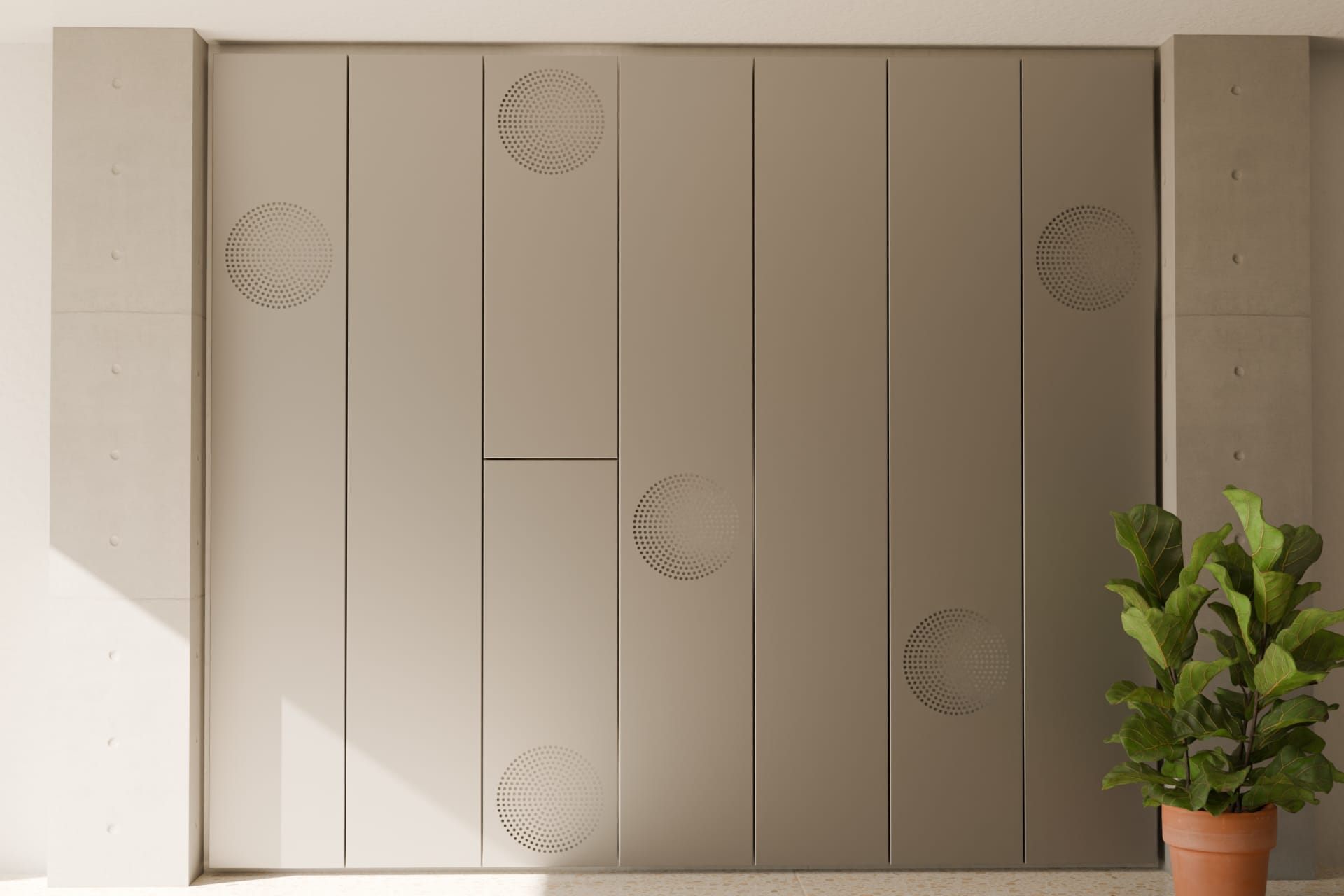

Coming Soon

New Moda Collections

New collections will take inspiration from folded paper forms and nature-inspired designs, bringing vitality and versatility to any space. These new designs will incorporate cutouts, bent tabs, and perforations, turning 2D metal panels into 3D signature design elements. Coming in Fall 2024.

Get Notified
