GB-60™ Stainless Steel

DIFFUSE STAINLESS STEEL FINISH FOR INTERIOR & EXTERIOR APPLICATIONS

GB-60 is Zahner’s innovative stainless steel product featuring a non-directional, mechanically achieved finish with ambient reflectivity. Created through precision glass bead blasting, GB-60 produces a soft, satin-like appearance that shifts subtly with light. Its crystalline surface offers a modern alternative to highly reflective finishes, making it ideal for architectural applications that balance aesthetics and functionality.

South facade for the National September 11th Museum.

Louvered perforated panels catch and direct sunlight.

closeup of the CUSTOM DIMPLED STAINLESS STEEL.

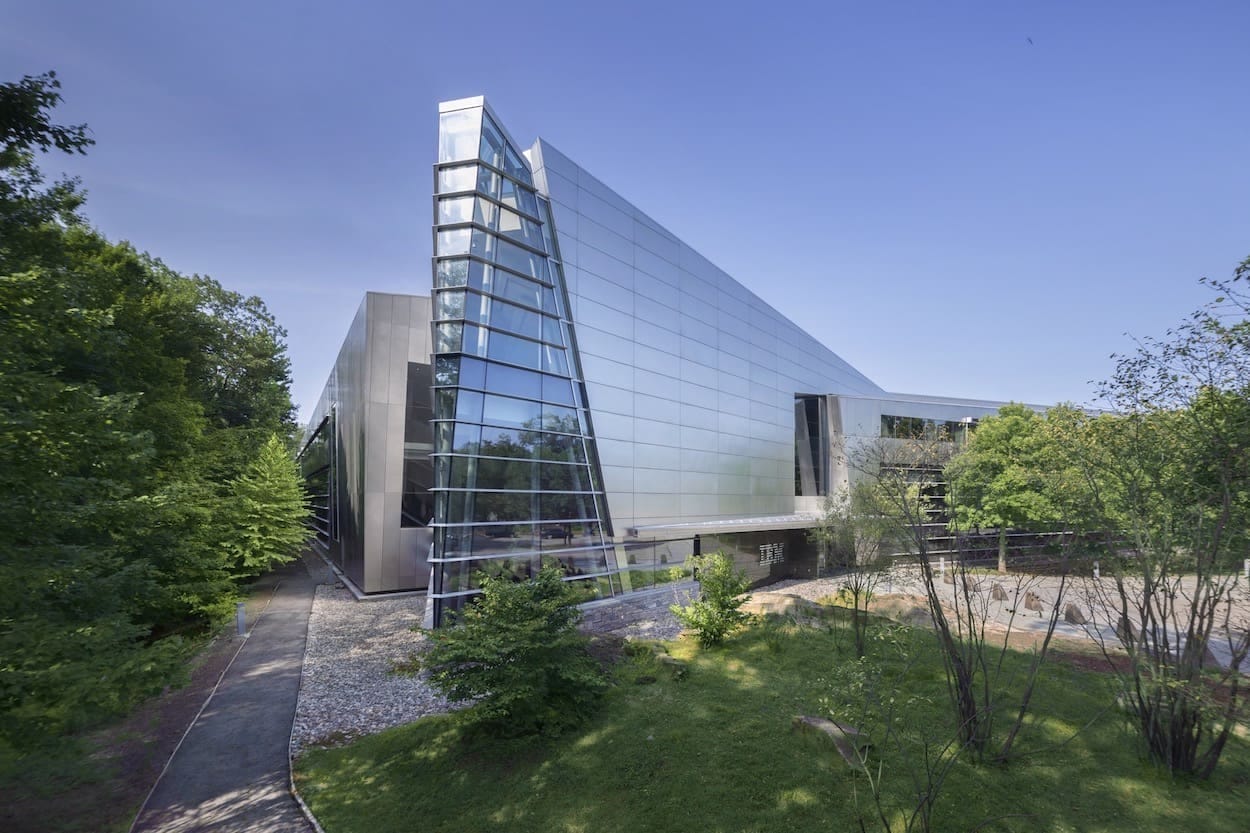

IBM Headquarters Entrance at Armonk, New York.

GB-60 STAINLESS STEEL USED ON THE KPF-DESIGNED IBM HEADQUARTERS IN ARMONK, NEW YORK.

Striating stainless steel panel system used on the 911 Museum facade.

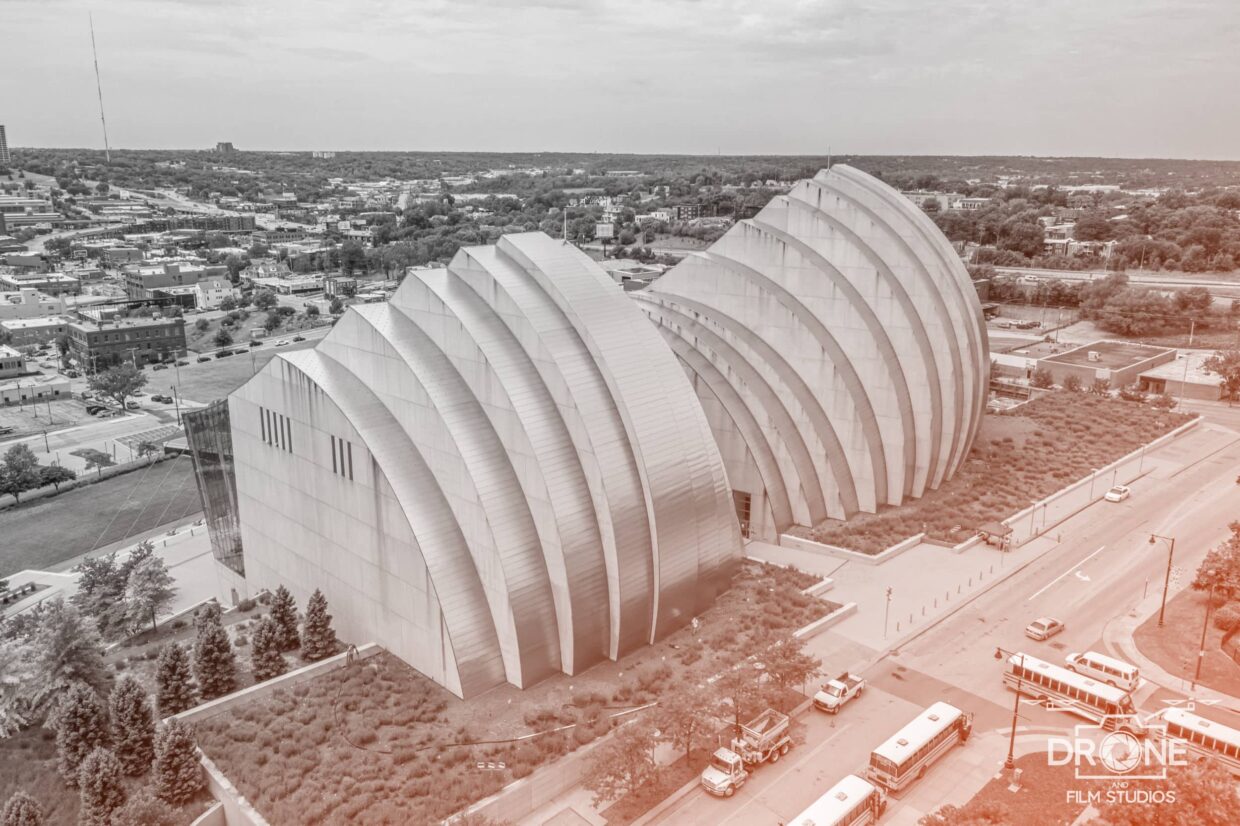

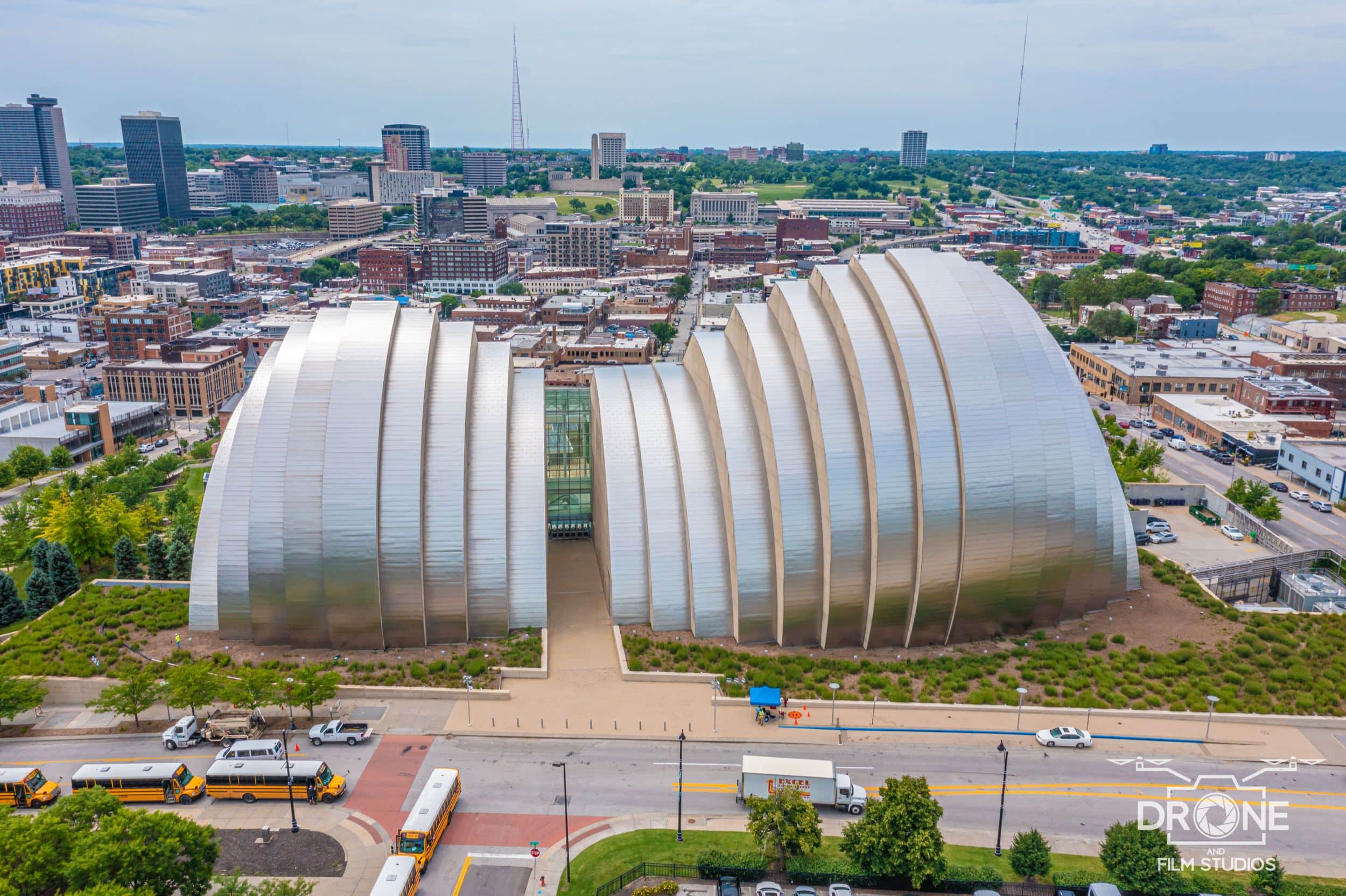

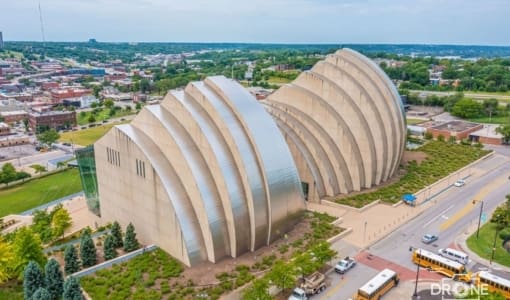

KAUFFMAN CENTER FOR THE PERFORMING ARTS.

Developed in collaboration with Kohn Pedersen Fox (KPF) architects, GB-60 was designed to meet the need for a contemporary, matte-glow finish on stainless steel. This versatile surface transitions from bright and deep in sunlight to pewter-like under overcast skies. Zahner’s expertise also allows for custom selective polishing on GB-60, adding texture and alternating reflectivity for unique patterns that enhance architectural designs.

GB-60 3D Visualization

Use the visualizer to explore GB-60 in 3D environments.

Switch between Exterior & Interior views to see how the sun’s movement will play across a facade or how the Surface will appear from vantage points with a fixed light source.

Exterior

Interior

GB-60 Products

GB-60 is available with the following Zahner products and services.

Standard Products

GB-60 Sheet Material

Order flat sheets of GB-60 direct from Zahner. Click the button below to see available sizes, thicknesses, and other product details as well as options for submitting a quote request.

Flat Sheet Options

Versatile Systems

Flat Seam System

Flat Seam offers a uniquely flexible and affordable metal facade system utilizing interlocking panels that is compatible with most Zahner Materials.

Explore Flat Seam

Versatile Systems

Flat Lap System

The aesthetic appearance of shingle or shake with the benefits of metal, Flat Lap is an easy to install, cost-effective shingle solution available in all Zahner Materials.

Explore Flat Lap

Versatile Systems

Plate Panel Facade System

The Plate Panel System by Zahner offers a large-panel option that mitigates oil-canning and improves material-yield.

Explore Plate Panel

Custom Solutions

Collaborate & Innovate

Whether it’s intricate facades or complex metal artworks, we welcome your most ambitious designs and construction projects. Push the boundaries of what’s possible, turn architectural dreams into tangible success, and create something truly special.

Explore Services

Documentation

Specs & Info Details Sustainability

Title	File Type	Link
GB-60™ Stainless Steel Safety Data Sheet (SDS)	pdf	Download
Surfaces Instructions – Storage & Handling	pdf	Download
Surfaces Product Datasheet	pdf	Download
Surfaces Rhino Material File – GB-60	zip	Download
Surfaces Specification	docx	Download
Surfaces Warranty	pdf	Download
Zahner Product Warranty	pdf	Download


Recommended Application	Exterior and Interior
Base Metal (alloy)	stainless steel (304 or 316)
Standard Thicknesses	14 ga 12 ga 11 ga
Approx. Decimal (mm)	.0785” (1.99) .1084“ (2.75) .1233” (3.13)
Approx. Weight (lbs/ft2)	3.15 4.41 5.04
COTE (in/in/°F)	9.6 x 10-6
Standard Sizes	4′ x 8’ 4’ x 10’ 4’ x 12’ 5′ x 8’ 5’ x 10’ 5’ x 12’

Declare label for Angel Hair® Stainless Steel | GB-60™ Stainless Steel Zahner® Surfaces

Declare

Declare is a transparency initiative by the International Living Future Institute, providing an “ingredients” label for building products that enables design and build teams to make informed choices.

Red List Free

Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.

Learn About Declare Reading the Label

Specs & Info

Title	File Type	Link
GB-60™ Stainless Steel Safety Data Sheet (SDS)	pdf	Download
Surfaces Instructions – Storage & Handling	pdf	Download
Surfaces Product Datasheet	pdf	Download
Surfaces Rhino Material File – GB-60	zip	Download
Surfaces Specification	docx	Download
Surfaces Warranty	pdf	Download
Zahner Product Warranty	pdf	Download

Details

Recommended Application: Exterior and Interior
Base Metal (alloy): stainless steel (304 or 316)
Standard Thicknesses: 14 ga, 12 ga, 11 ga
Approx. Decimal (mm): .0785” (1.99), .1084“ (2.75), .1233” (3.13)
Approx. Weight (lbs/ft2): 3.15, 4.41, 5.04
COTE (in/in/°F): 9.6 x 10-6
Standard Sizes: 4′ x 8’, 4’ x 10’, 4’ x 12’, 5′ x 8’, 5’ x 10’, 5’ x 12’

Sustainability

Declare

Red List Free

Products with the Red List Free label are complying with the Living Building Challenge goals of ingredient transparency and industry-wide elimination of all Red List chemicals.

Get Started

Use GB-60 in Your Project

Get a Quote Request a Sample Contact Sales

GB-60 Stainless Steel Manufacturing, Properties, and Applications

GB-60 is a stainless steel Zahner product featuring a diffused, non-directional surface with ambient reflectivity. The finish is produced using a mechanical glass bead blasting process. The GB-60 process was first developed for architectural applications requiring diffused reflectivity.

History of Bead-Blasting in Architectural Metal

In the late 1800s, a patent was filed by Benjamin Chew Tilghman for an abrasive blasting technique to be used on bottles, cleaning boilers, and bringing out the grain in wood. Tilghman had supposedly seen the effect of wind-blown sand on glass while a general in the United States Army.

Nearly a century later in the 1990s, the bead-blasting technique had been used in a number of industries. However, architectural metals at the time were limited to directional finishes such as the tried and true No. 4 finish on stainless steel. The issue with these finishes is that they reflect light in a linear pattern, as opposed to scattering light, which gives reflected light a more sensual glow.

In the early 1990s, the architects at Kohn Pedersen Fox (KPF) were developing a palette for the IBM Headquarters in Armonk, New York. The goal was to create a modern non-directional finish which would reflect light in a more satin or matte effect. There were no manufacturers or mills providing a metal surface in this fashion, so KPF Associates worked with A. Zahner Company to develop the finish as an in-house product. The building, completed in 1997, was clad in stainless steel panels with the GB-60 finish.

Aesthetic Qualities of GB-60 Stainless Steel

The most popular use of GB-60 is to create satin aesthetics on stainless steel. The finish is bright but diffuse, almost crystalline in appearance. GB-60 stainless steel is characterized by a soft, grainy reflection. Direct light reflecting off the surface is diffused by the multitude of small overlapping impact craters. The surface appears bright and deep in full sunlight. On cloudy days, it takes on the appearance of pewter. Low sun makes it glow purple and reddish silver.

To understand the reflectivity, take a look at the comparative gloss readings when compared with standard reflective or Angel Hair stainless steel. This data shows Angel Hair Process applied to a base material with a 2B finish. If you apply Angel Hair to a No. 8 polished base material or a bright annealed base material, you can achieve a variety of reflective properties.

Related Surface

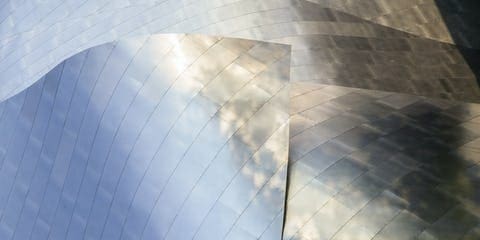

Angel Hair® Stainless Steel

AMBIENT REFLECTIVITY FINISH ON STAINLESS STEEL FOR INTERIOR & EXTERIOR APPLICATIONS Angel Hair is Zahner’s patented process for creating a soft, diffuse finish on stainless steel. By etching the metal with precision-controlled techniques, Angel Hair reduces the intense reflectivity of standard finishes while maintaining a refined, lustrous appearance. This smooth, uniform surface effectively scatters light, minimizing glare and heat concentration, making it ideal for architectural projects that require both functionality and elegance indoors or outdoors.

The GB-60 finish is a nondirectional satin finish applied by the kinetic impact of small glass spheres onto the surface of a metal. The material itself is distinguished by its spherical form. Several sizes are available, each of which can create subtle differences on the finish. See product information and specifications here.

How GB-60 Surfaces are Manufactured

The impact of the blasting to the metal surface creates a small indentation. The indentations are rounded, and they tend to overlap. This overlapping crater produces light-scattering behavior, effectively diffusing the reflectivity.

Note that this is not a cleaning process. If the surface of the metal has dirt, scratches, or even fingerprints, blasting will not remove these. On the contrary, it will fix the grease or fingerprint into the surface, making it impossible to remove.

The process involves feeding glass beads from a hopper into a high-pressure stream of clean, dry air. The outlet sprays the beads at high speed onto the surface of the metal. The glass beads that impact on the surface can shatter. The shattered beads are removed in a separator, and the spherical beads are recycled back into the hopper.

The process seems simple, but because of the reflectivity of stainless, it is far more sensitive to minor variations in the blasting process. To achieve a consistent surface careful control of the blasting application is critical to eliminate hazing and mottling in the reflection.

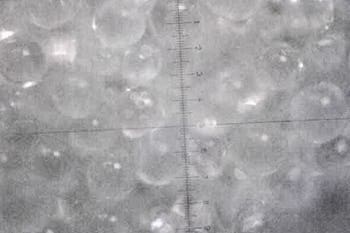

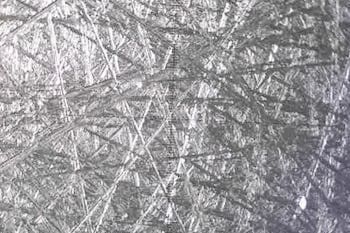

Microscope photographs comparing GB-60 stainless steel with Angel Hair® Stainless steel.

PHOTO © A. ZAHNER COMPANY.

Selective Finishing with GB-60

Selective polishing can produce uniquely decorative designs on metals through special resists. The exposed regions of the metal surface receive textured polishes by blasting or brushing, resulting in an alternating reflectivity that gives the design a highlighted appearance.

The resist materials can be a laser-cut rubber film, photo-resist, or plastisols applied by silk screen. These processes can be further refined to achieve fine detail by using photoresists. Many designs are possible through these techniques, as showcased in Zahner’s work for CVS Las Vegas and the September 11 Muesum.
