Louvered ZIRA is a versatile system to create unique perforated louvered panel systems.
Street View of the Leong Leong facade on the City View Garage.
© A. Zahner Company
Street View of the Leong Leong facade on the City View Garage.
© A. Zahner CompanyLouvered ZIRA panels can be formed using a variety of processes, from CNC-milling to laser-cut tracery. For designs looking to add texture or control light, Louvered ZIRA provides a range of possibilities, both in function and aesthetics. The perforations allow light and air flow while providing a physical barrier, and also create a unique texture of the building’s surface.
Louvered ZIRA system uses a United States registered patent owned by Zahner. The system works by three-dimensionalizing perforations using tabbed or folded perforation. Any laser-cut or milled shape can be formed into a micro louver on the surface of the metal. The machine cuts partial perforations with folded tabs, and opens the tab by folding the tab back.
In addition to providing unique aesthetics, designers can develop passive temperature control by by positioning the angle of the tabs in relation to the sun’s trajectory. This passive heating and cooling benefit is further increased by the metal’s function as a second skin and air barrier.
This system can aid a wide range of applications, from parking structures and screenwalls, to landscape designs and guardrail systems.

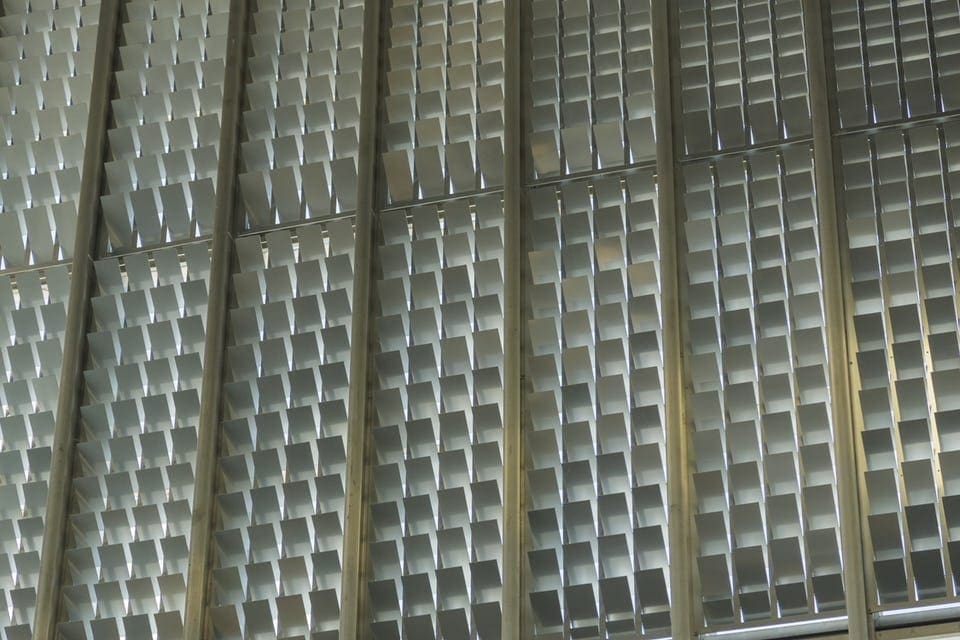

Rectangular louvered perforations provide enhanced light control
PHOTO © A. ZAHNER COMPANY.
Organic louvered perforations used across the metal panel surface.
PHOTO © LORRAINE BOOGICHLouvered ZIRA enables designers to take big steps into the next generation of customized perforated metal by adding a three-dimensional aspect to flat wall systems.
The systems being developed enhance the above functionalities and aesthetics in several ways. For artistic purposes, the louver tabs on each perforation increase the contrast of light hitting the surface. This is because angle of the each tab jutting out provides an increased range of light reflectance. It also means that throughout the day as the sun moves across the sky, the facade will change with the light.
LOUVERED PERFORATIONS (LEFT) PROVIDE ENHANCED CONTRAST COMPARED WITH STANDARD PERFORATION (RIGHT).
The possibilities of louvered perforations on metal surfaces are endless. See projects completed below featuring Louvered ZIRA, or contact the Zahner sales team to get started with your design.
